Water based Rust Preventives And VCI Water based Additives
Water based rust preventives have been trending in industry for a while now. These products were develop as an environmentally friendly alternative to classic oil based rust preventatives. We have a wide range of products available for either indoors or outdoors protection. Indoors Water based formulations are extremely attractive because they are lower cost than most oils, usually VOC free, safe to store and manipulate, have excellent humidity chamber results and can sometimes be used as metalworking fluids or metalworking fluid additives. Outdoors capable corrosion inhibitors are also a very attractive solution that can provide similar protection as their solvent-based counterparts while being safer to use, manipulate and dispose. The biggest drawback to going Water based is that surface preparation requirements are higher and results are less forgiving to a non optimum level of cleanness.
Water based Rust Preventive Concentrate For Indoors Protection
VpCI®-377 is a Water based concentrate designed as a complete
replacement for oil-based rust preventives for indoor protection of
equipment and components. VpCI®-377 is a corrosion preventive
liquid that meets tough anti-pollution requirements. The wide
dilution range with water (0.5-20%)* allows flexibility to customize
the length of protection required and the applied cost per square
foot (or m2).
VpCI-377 forms a solution in water and is applied to
metal surfaces by spraying or dipping. VpCI-377 does
not need to be removed, but if necessary, can be removed
with conventional Alkaline cleaners.
*Contact Our Technical Service for dilution recomendations
| Appearance | Clear amber liquid |
| Film Type | Dry, clear |
| Flash Point | N A |
| Removal Methods | Alkaline cleaners and solvents (VpCI-416/VpCI-419) |
| Density | 8.7-9.2 lb/gal (1.04-1.10 kg/l) |
| Non-volatile Content | 40-47% |
| BOD/COD (2.5% solution in water 28 days | 0.48 |
| Corrosion Resistance | Up to 24 months indoors |
Packaging
VpCI®-377 is available in 5 gallon (19 liter) pails, 55 gallon (208
liter) drums, liquid totes, and bulk. The product should be stored
sealed in a heated warehouse to avoid freezing.

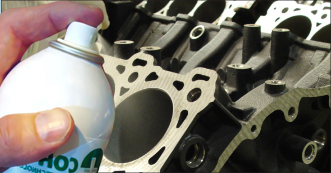

VpCI®-377 is also available in EcoAir® compressed air cans (12
oz. / 340 g) bottles.
Biodegradable Water based Rust Preventive

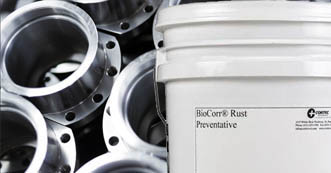

BioCorr® Rust Preventative is a waterbased, biobased, and
biodegradable rust preventive product that is intended for preservation
of metals in storage and during transportation. BioCorr® Rust
Preventative provides multi-metal protection and is an excellent
environmentally sound alternative to petroleum derived products.
This ready-to-use formulation can provide protection for up to
two years of indoor storage; or during shipments when combined
with VpCI® packaging materials. Unlike rust preventative oils this
product leaves a dry film on the surface of the metal that is virtually
undetectable. This feature helps to create a clean workplace and
prevents material waste. BioCorr® Rust Preventative is biodegradable;
eliminating expensive disposal costs associated with oils.
BioCorr® Rust Preventative has been awarded USDA BioPreferred SM
designation (www.biopreferred.gov).
| Appearance | Milky white liquid |
| Film Type | Dry, clear |
| Flash Point | N A |
| Density | 8.3-8.4 lb/gal (1.00-1.01 kg/l) |
| Non-volatile Content In Concentrate | 89-93% |
| ASTM D-1748 (Humidity Chamber) | 600 hs on steel |
| pH | 8.4-9.1(neat) |
Packaging
BioCorr® Rust Preventative is packaged in 5 gallon
(19 liter) pails, 55 gallon (208 liter) drums, liquid totes, and bulk.
Also available as EcoAir® BioCorr® in 12 oz. (340 g) compressed
air cans, 12 per carton.
The product should be stored sealed. Agitate before each use.
High Performance Water based Dry Film For Outdoors Protection

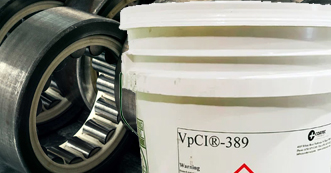

VpCI®-389 is a fast drying,
Water based temporary coating
that provides protection in
harsh, outdoor, unsheltered
applications. Provides multimetal protection. Excellent UV
resistance. Can be matched to
some custom colors. Provides
a slightly tacky film.
| Appearance | White Viscous Liquid |
| Film Type | Dry |
| Flash Point | 180°F (82°C) |
| Removal Methods | Alkaline cleaners and solvents (VpCI-416/VpCI-419) |
| Density | 8.32 lbs/gal (1.00 kg/l) |
| Spread Rate | 595 sq.ft/gal @ 1.0 mils DFT (14.6 sq.m/l @ 25 μm) |
| Viscosity | 5,500-10,000 Centipoise |
| Salt Spray (ASTM B117) | 600 hrs |
| Humidity (ASTM D1748) | 1000+ hrs |
| Dry to Touch | 10-60 min |
| Volume Solids | 37.1% |
Packaging
VpCI®-389 is available in 5 gallon
(19 liter) pails, 55 gallon (208
liter) metal drums, liquid totes,
and bulk. Keep product from
freezing. Also available as EcoSpay®-389.
Outdoors Ready Water based Removable Rust Preventive Coating

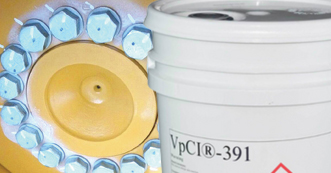

VpCI®-391 is a fast drying,
Water based temporary coating
that provides protection in
harsh, outdoor, unsheltered
applications. Provides multimetal protection. Excellent UV
resistance. Can be matched to
some custom colors. Provides
a non-tacky film. Use of VpCI®-
391 on weld joints does not
negatively impact weld geometry
or mechanical properties of the
weld. It can be used to keep
surfaces corrosion-free prior to
welding.
| Appearance | White Viscous Liquid |
| Film Type | Dry, Clear |
| Flash Point | 212°F (100°C) |
| Removal Methods | Petroleum solvents/Alkaline cleaners (VCI-410 series) |
| Density | 7.4-7.6 lb/gal (0.89-0.91kg/l) |
| Spread Rate | 551 sq.ft/gal @ 1.0 mils DFT (13.5 sq.m/l @ 25 μm) |
| Solids Content | 34.4% |
| Salt Spray (ASTM B117) | 250 hrs |
| Humidity (ASTM D1748) | 1400+ hrs | Dry to touch | 30-60 min |
Packaging
VpCI®-391 is available in 5 gallon
(19 liter) pails, 55 gallon (208
liter) metal drums, liquid totes,
and bulk. Keep product from
freezing.
Mineral Oil Based Metalworking Fluid Rust Preventive Additive
M-250 is an anticorrosion additive to soluble oils, which
is designed for use with a variety of naphtenic oil-based
formulations. M-250 contains emulsifiers which allow
this product to support stability of water emulsion (when
added to the ready to use emulsion) or to add some
emulsification properties to the soluble oil (concentrate).
When M-250 is blended with appropriate base oils and
lubricants, the resulting soluble oil concentrate produces
a stable oil in water emulsion, that is non-separating and
non-foaming ready-to-use metalworking fluid.
M-250 is very compatible with many lubricants such as
chlorinated paraffins, esters, and sulfurized fats. It is
compatible with a range of biocides and defoamers which
can be added to the soluble oil concentrate or working
emulsion as needed.
As an additive to soluble oils, M-250 can be added to
the final oil in water emulsions in concentration 0.75%
or to the oil concentrate 10-20% based on the dilution
ratio with water.
| Appearance | Brown viscous liquid |
| Film Type | Dry, Clear |
| Flash Point | >212°F (>100°C), closed cup |
| Removal Methods | Alkaline cleaners and solvents (VpCI-416/VpCI-419) |
| Density | 8.3-8.4 lb/gal (0.99-1.01 kg/l) |
| Cast iron chip test (ASTM D-4627, 0.75% concentration) | Pass |
| Humidity chamber test (ASTM D-1748, 0.75% in water | >168 hours (7 days) |
| Non-volatile Content | 88-95% |
Packaging
M-250 is available in 1 gallon (3.78 liter) pails,
5 gallon (19 liter) plastic pails, and 55 gallon (208
liter).
Corrosion Inhibitor Synthetic Metalworking Fluid Additive
M-251 is an environmentally friendly , low foaming water
soluble corrosion inhibiting additive for synthetic cutting
fluids. It provides corrosion protection to carbon steel,
copper, galvanized steel, and other ferrous and nonferrous metals and their alloys. M-251 provides both
contact and vapor phases corrosion potection during and
after operation.
M-251 is compatible with most Water based lubricants
and with a range of biocides. It is compatible with sea
water, which allows the use of this additive in off-shore
conditions.
As an additive to synthetic cutting fluids M-251 should
be added in the following concentrations:
Operation and short term (up to 30 days) protection
after the operation - 0.75-1.0%
Operation and longer term (up to 90 days)
protection after the operation - 1-5%
Operation with salt water and short term of
protection after the operation - 5-10%
| Appearance | Clear yellow/amber liquid |
| Film Type | Dry, Clear |
| Flash Point | N A |
| Removal Methods | Alkaline cleaners and solvents (VpCI-416/VpCI-419) |
| Density | 8.5-8.7 lb/gal (1.02-1.03 kg/l) |
| Viscosity | N A |
| Non-volatile Content | 50 - 60% |
| Cast iron chip test (ASTM D-4627, 1% concentration) | Pass |
Packaging
M-251 is available in 5 gallon (19 liter) plastic pails and 55 gallon (208 liter).
Corrosion Inhibitor for Food Can Protection
S-8 is a unique product formulated only from FDA approved
ingredients. It can be used in very low concentration and still
provide complete corrosion protection in water, its vapors
and their interface. This product is especially useful for the
corrosion protection of metallic cans with different food items
during their washing or sterilization of the packed food.
S-8 is a non-toxic “green” filming corrosion inhibitor.
Sodium salt of fatty amino acids and amino alcohol are the
active ingredients of S-8.
| Appearance | Slightly hazy yellowish liquid |
| Film Type | Oily |
| Flash Point | N A |
| Removal Methods | Alkaline cleaners and solvents (VpCI-416/VpCI-419) |
| Density | 8.3-8.6 lb/gal (99-1.03 kg/l) |
| pH | 10.5-11.5 (1% in water) |
| Non Volatile Content | 25-35% |
| Dosage | 150-250 ppm |
| Certified Components | FDA# 21 CFR - 175.105 FDA# 21 CFR - 178.3130 FDA# 21 CFR - 177.1200 FDA# 21 CFR - 173.310 FDA# 21 CFR - 176.210 |
Packaging
S-8 is available in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk.
Pure VCI In Water Solution
VpCI®-337 is a ready-to-use waterborne corrosion inhibitor used
primarily for robust preservation of internal void spaces. Vapor
phase Corrosion Inhibitors (VpCI®) in VpCI®-337 migrate to protect
metal surfaces resulting in time and cost savings. When combined
with labor-saving techniques, minimum amount of product can be
used to protect large areas or volumes. VpCI-337 is effective on
multiple metals.
VpCI®-337 is a combination of contact and vapor corrosion
inhibitors, which allows a wide range of uses; from low-dose voidspace protection to steel coil edge spray.
Biodegradable (87% biodegradation in 28 days)
| Appearance | Clear to hazy amber liquid |
| Film Type | Thin, soft film |
| Flash Point | >200 °F (93 °C) |
| Removal Methods | Alkaline cleaners and solvents (VpCI-416/VpCI-419) |
| Density | 8.7-8.9 lb/gal (1.04-1.06 kg/l) |
| pH | 7.2-9.0 (neat) |
| Freeze Point | 32 °F (0 °C) |
| Carrier | Water |
| Dosage | 0.5-1.0 oz./ft3 (0.5-1.0L/m3 ) |
Packaging
VpCI®-337 is packaged in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, totes, and bulk.
Cortec® Logo is registered trademark of Cortec® Corporation. VpCI®, MCI®, EcoClean®, EcoAir®, BioCorr®, Boiler Lizard®, BioCorr® and Ecoline® are registered trademark of Cortec® Corporation
