What are VCI Emitters And Which One Should You Choose?
Emitters with VCI (vapor corrosion inhibitors) are devices with a rust inhibitor chemical embedded in their structure, designed to protect enclosed metal and metal parts from the degradation of rust. These are designed to protect for up to two years when they should be replaced by new units.
VCI Emitters can be foam-based, bio-fabric-based or emitter cups containing corrosion inhibitor powders. They can also have an adhesive back or not. Selection is based on a mix of criteria including: volume to protect, cost, dustiness and the desire to fix it to a wall of the enclosed volume that needs rust prevention. Reach out to us and will pick the right product for you.
Multi-Metal VCI Protection In A Long Lasting Compact Package

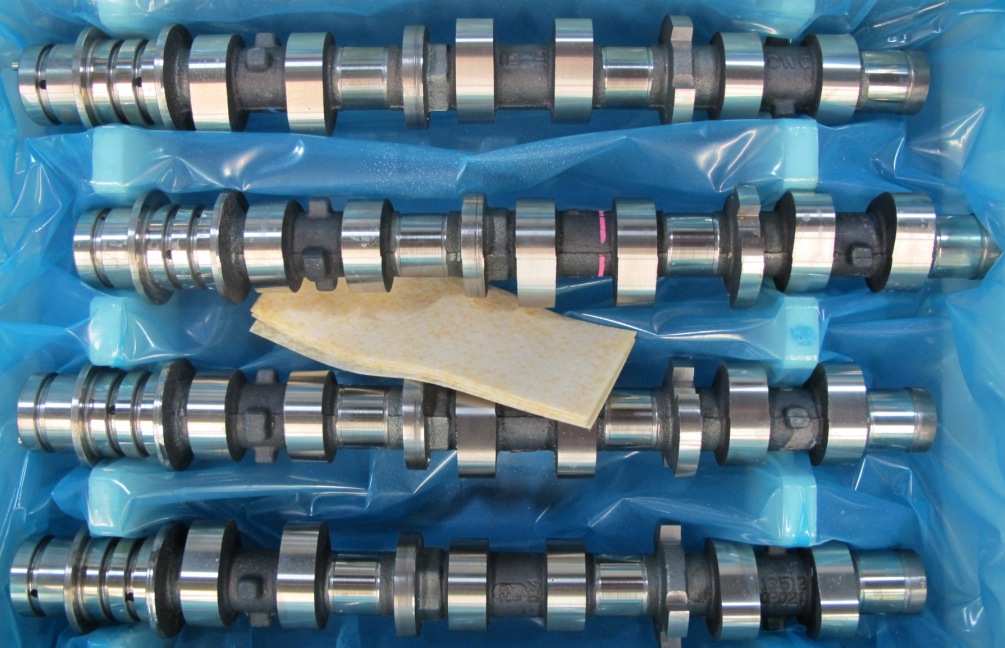

VCI foams and fabrics combine multi-metal VCI protection and desiccant action in one simple effective step.
Use VCI pads, VCI foams, VCI capsules and VCI fabrics as stand alone devices in
enclosed cabinets and cavities or to complement our VCI films
surrounding large void air spaces.
Simple, powerful Multi-Metal Protection:
Foams and Fabrics contain up to 10 times more VCI than
papers and films
Fast emission and saturation allows quick shipments of pre
served equipment
Available with static dissipative properties and in custom
sizes and shapes
Lightweight allowing lower cost handling, transport, and storage
Easy dosage using pre-measured units and sizes

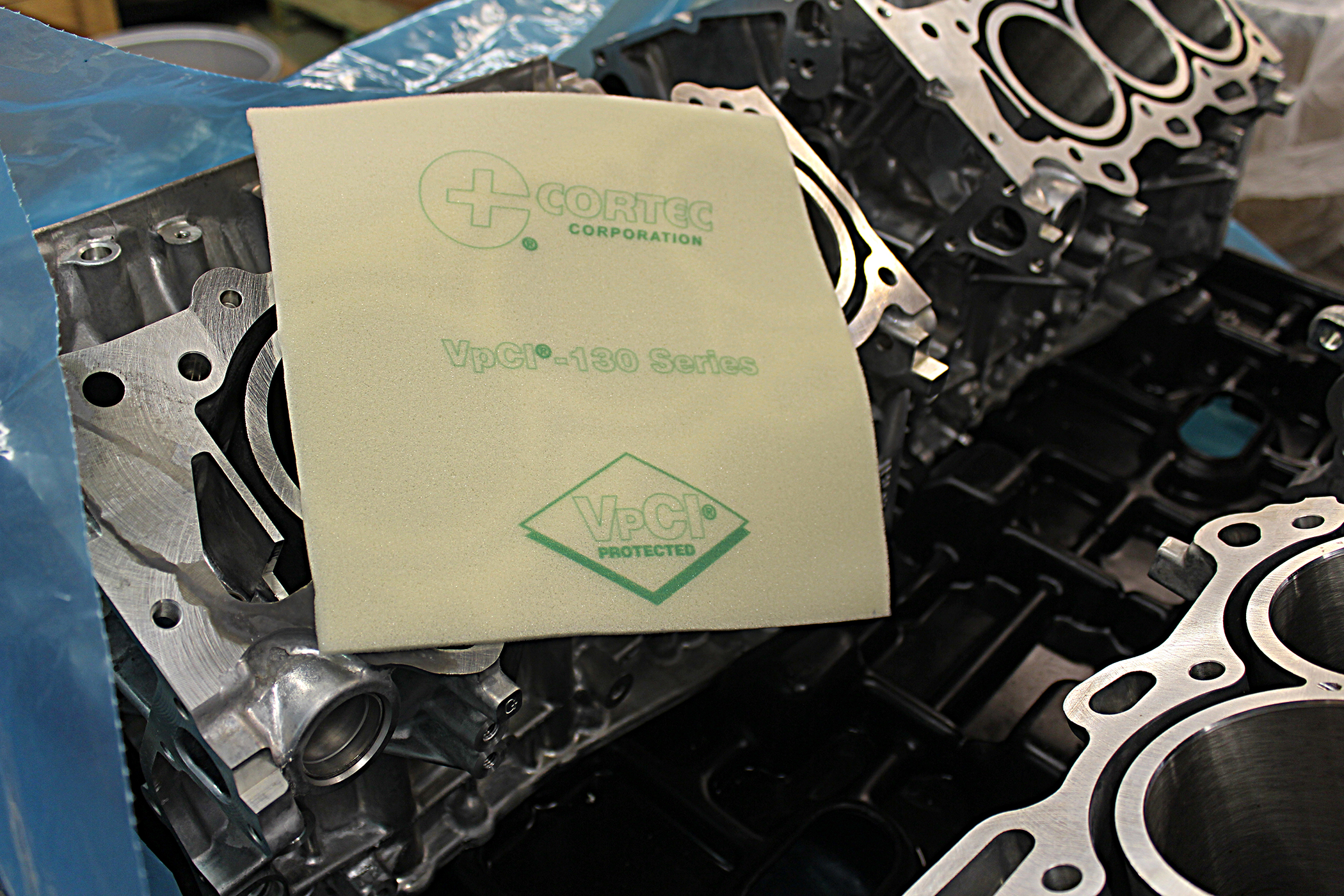

VCI emitter foams are designed to protect products with large surface areas, to emit
VCIs in shipping containers, and to protect products and equipment with large void areas. VCI foams
also afford long-term protection for large export packages, crates and seagoing containers. The presence of Rust on circuit boards and electric components cause parasitic currents of electricity that cause components to fail before their usual design lifetime which presents reliability issues and increased maintenance cost. Our VCI emitters are the solution you need!
High Performance VCI Emitters Long Term Rust Protection At The Lowest Cost
VCI Emitters With Adhesive Backs Rust Prevention For Electric Cabinets | Anti Rust Vapor Releasers | Electricity
VpCI®-101
VCI Anti Rust Foam Emitters For Small Volumes | Adhesive | Multi-metal | One Per ft3 | Up To Two Years Of Protection | Made in USA | Non Toxic | Rust Prevention For Electric And Electronic Equipment

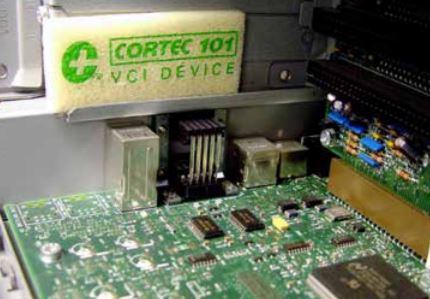

VpCI®-101 devices are designed to provide rust prevention protection
for metal components and parts enclosed in non-ventilated control
boxes, cabinets, or tool boxes. A VpCI®-101 device protects
up to 1 cubic foot (28 liters) in volume. VpCI®-101 is a small
patented device from which Vapor phase Corrosion Inhibitors are
slowly released. The rust inhibitors emit vapors that form
a molecular layer on metal surfaces to protect critical, complex,
and expensive electronic equipment and other metal components
during operations, shipping, or storage. VpCI®-101 provides longterm protection against corrosion even in the presence of adverse
conditions including salt, moisture, airborne contaminants, H2S,
SO2, NH3, and others.
VpCI®-101 devices are extremely simple and convenient to install.
The devices should be installed at the earliest possible time,
preferably during manufacturing or assembly. Simply select a space
within any enclosure where rust prevention protection would be useful.
Verify the surface where the device will be affixed is clean and free
of debris. Peel off the protective peel strip from the bottom of the
device and attach it to the clean surface. VpCI®-101 devices can
be installed in any position. For volumes greater than 1 cubic foot
(28 liters) use more than one device. If the enclosure is not totally
airtight, or if the access doors are opened frequently, replace the
VpCI®-101 device more often than every 2 years. After periods of
heavy maintenance replace the device. For additional protection
spray the enclosure very lightly with Cortec® ElectriCorr® VpCI®-
238 or VpCI®-239.
*For more information please contact our technical department
Color
Pale Yellow Foam
Biodegradability
N A
Service temperature
-40°F to +150°F
Density
N A
Dosage
1 every ft3
NSN
6850-01-338-1392
MIL SPEC
MIL-PRF-81705D
Packaging sizes
-50 Units per carton

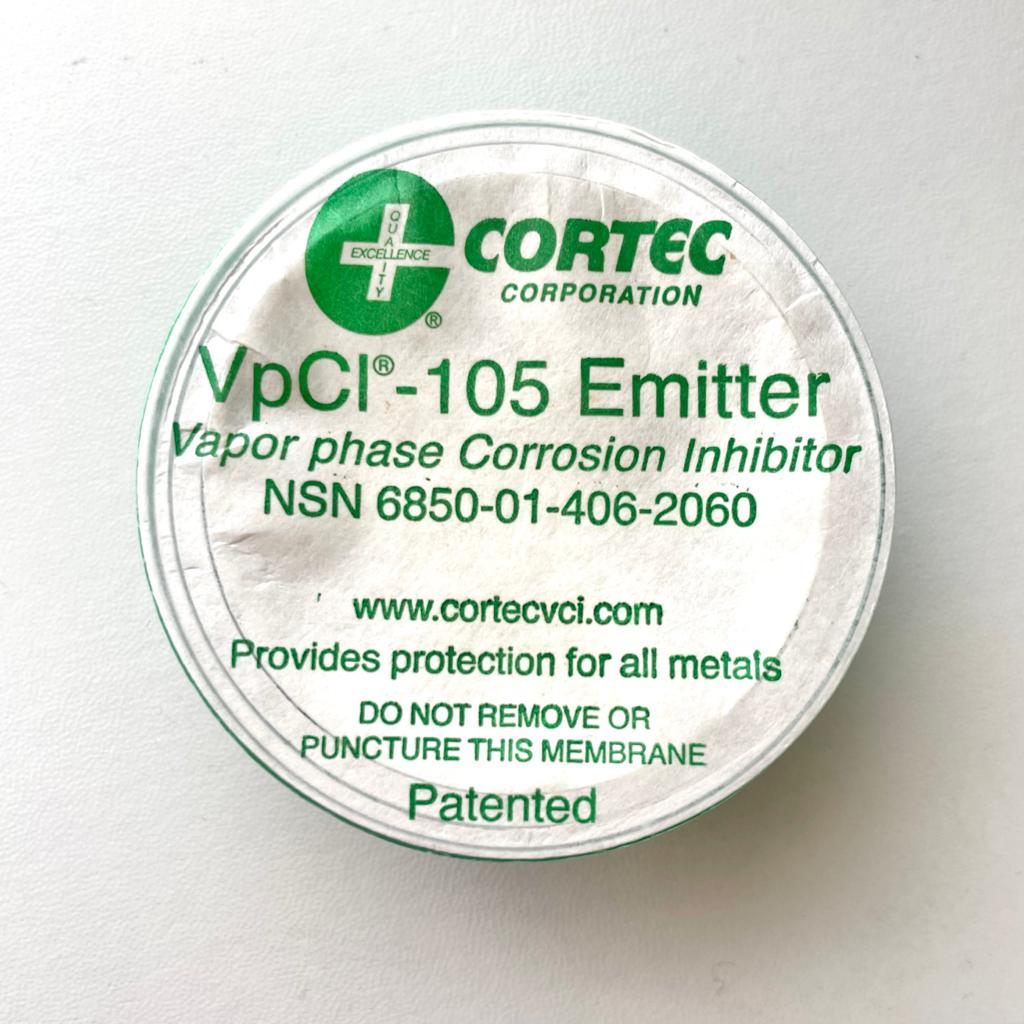

VpCI®-105
VCI Anti Rust Emitter Cups For Medium Size Volumes | Adhesive | Multi-metal | One per 5ft3 | Up To Two Years Of Protection | Made in USA | Non Toxic | Rust Prevention For Electric And Electronic Equipment
VpCI®-105 emitters are unique devices designed to provide
anti rust protection for metal components and parts enclosed
in non-ventilated control boxes, cabinets, or tool boxes up to 5
cubic feet (141.6liters). The VpCI®-105 device emits Vapor phase
Corrosion Inhibitors, which form a protective coating on all metal
surfaces. VpCI®-105 is a patented plastic emitter with a breathable
Tyvek®* membrane through which the corrosion inhibitor is released.
It provides long-term protection against corrosion even in the
presence of adverse conditions including salt, moisture, airborne
contaminants, H2S, SO2, NH3, and others.
VpCI®-105 is extremely simple and convenient to install. The device
should be installed at the earliest possible time. Simply select a
space within any enclosure where corrosion protection would be
useful. Verify the surface the device will be affixed to is clean and
free of debris. Peel off the protective peel strip from the bottom of
the device and attach it to the clean surface.
VpCI®-105 emitters can be installed in any position. For volumes
greater than 5 cubic feet (141.6 liters), use more than one device.
If the enclosure is not totally airtight, or if the access doors are
opened frequently, replace the VpCI®-105 device more often than
every 2 years. After periods of heavy maintenance, replace the
device. For additional protection spray the enclosure very lightly
with ElectriCorr® VpCI®-238 or VpCI®-239.
*For more information please contact our technical department
Color
Green and White Cups
Biodegradability
N A
Service temperature
-40°F to +150°F
Density
N A
Dosage
1 per 5 ft3
NSN
6850-01-406-2060
MIL SPEC
MIL-I-22110C
Packaging sizes
-20 Units per carton

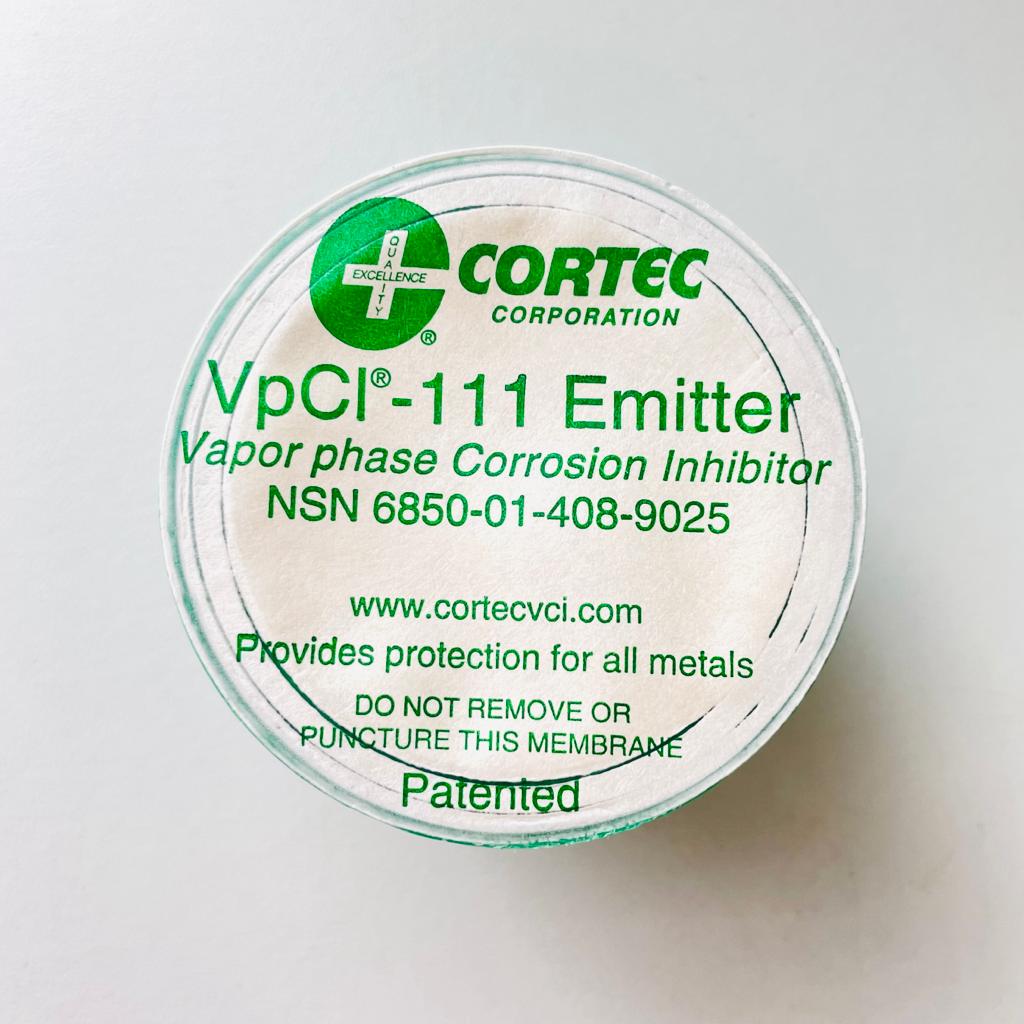

VpCI®-111
VCI Anti Rust Emitter Cups For Large Size Volumes | Adhesive | Multi-metal | One per 11 ft3 | Up To Two Years Of Protection | Made in USA | Non Toxic | Rust Prevention For Electric And Electronic Equipment
VpCI®-111 emitters are unique devices designed to provide
anti rust protection for metal components and parts enclosed
in non-ventilated control boxes, cabinets or tool boxes up to 11
cubic feet (312 liters). The Vapor phase Corrosion Inhibitor (VpCI®)
emits vapors, which form a molecular layer on internal metal
surfaces to protect critical, complex, and expensive electronic
equipment during operation, shipping, or storage. VpCI®-111 is
patented with a breathable Tyvek® membrane cover through which
corrosion inhibitors are slowly released. VpCI®-111 provides long
term protection against corrosion even in the presence of adverse
conditions including salt, moisture, airborne contaminants, H2S,
SO2, NH3, and others.
VpCI®-111 is extremely simple and convenient to install. VpCI®-
111 emitters should be installed as early as possible, preferably
during manufacturing or assembly. Simply select a space within
enclosed device where corrosion protection would be useful. Verify
that the surface on which the device will be installed is clean and
free of debris. Peel off the protective peel strip from the bottom of

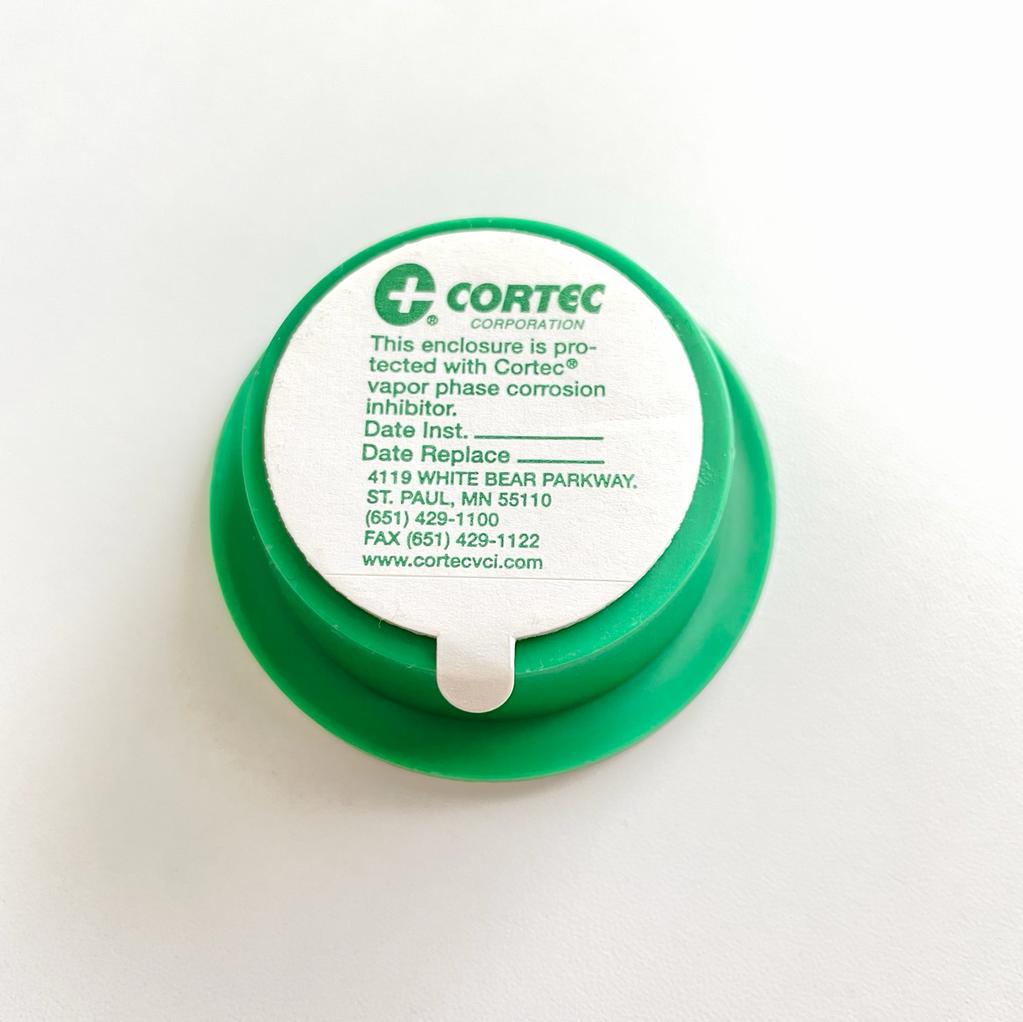

the device and attach it to the clean surface. The peel strip can be

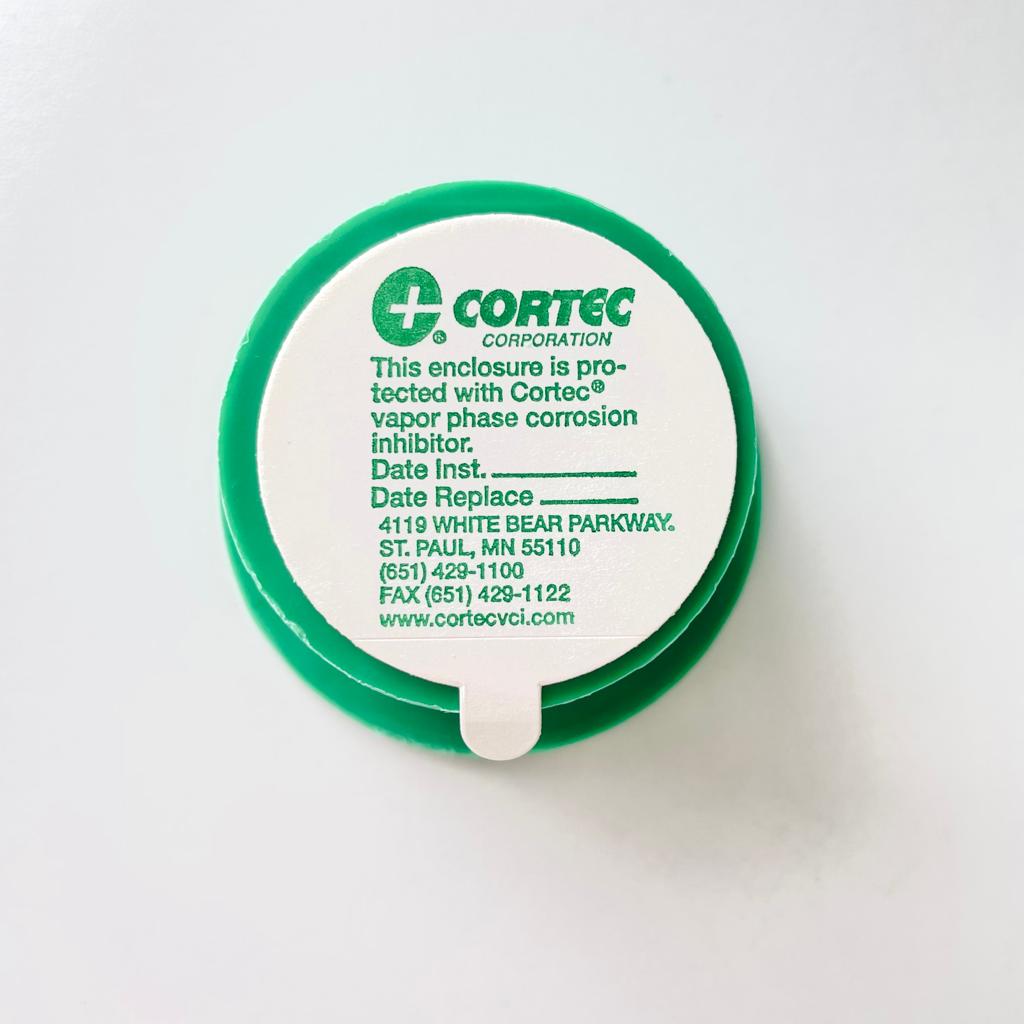

separated to reveal a self-adhesive sticker on which the installation
and replacement dates can be noted. VpCI®-111 emitters can be
installed in any position. For volumes greater than 11ft3 (312 L),
install more than one VpCI®-111. If the enclosure is not totally
air-tight or if the access doors are opened frequently, replace the
VpCI®-111 emitter more often than every two years. After periods of
heavy maintenance, replace the emitter. For additional protection,
spray the enclosure very lightly with ElectriCorr® VpCI®-238 or ElectriCorr® VpCI®-239.
*Tyvek is a registered trademark of DuPontTM
*For more information please contact our technical department
Color
Green and White Cups
Biodegradability
N A
Service temperature
-40°F to +150°F
Density
N A
Dosage
1 per 11 ft3
NSN
6850-01-408-9025
MIL SPEC
MIL-I-22110C
IBM Approval
# 44V5421
Packaging sizes
-10 Units per carton

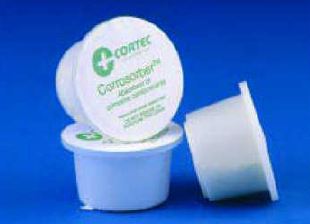

Corrosorber® Capsules
Sulfhidric Acid - Hydrogen Sulfide Adsorbing Capsules | Made in USA | Adhesive | Special To Protect Silver And Other Non Ferrous Metals | Electronics Protection | No Toxic | Copper Protection | For Oil And Gas Industry
Corrosorber® absorbs hydrogen sulfide and other
corrosive gases. Corrosorber® will not interfere with
VpCI protection, but instead it will absorb the gases
that cause corrosion.
Severe damage or failures occur due to the presence
of these corrosive species. Corrosorber® absorbs
hydrogen sulfide and volatile mercaptans, removing
them from the atmosphere and eliminating the cause
of some damage to metals.
The chemicals contained in Corrosorber® have been
especially treated to change color from off-white to
black as corrosive gases are trapped.
In addition, unlike other products on the market,
Corrosorber® will not release the corrosive gases back
into the atmosphere. The reaction is irreversible,
eliminating any concern about post contamination.
Corrosorber® is non-toxic and has no effect on the
environment. It can be handled without safety
equipment.
Install the Corrosorber® at the earliest possible time,
before shipping or receiving if possible. Simply select
a space within any enclosed device where corrosion
protection would be useful, and attach with adhesive
backing. Replace cup as soon as the container
appears gray.
*For more information please contact our technical department
Color
White Capsules
Biodegradability
N A
Service temperature
32°F to 140°F
Density
N A
MIL SPEC
N A
NSN
N A
Dosage
One every 10ft3
Packaging sizes
-10 capsules per carton
VpCI®-150
VCI Emitter Foam-type Device For A Variety Of Volumes | Adhesive | Multi-metal | Up To Two Years Of Protection | Made in USA | Non Toxic | Rust Prevention For Electric And Electronic Equipment
VpCI®-150 and VpCI®-170 patented foam tapes
protect metal in enclosed spaces from rust.
Effective in control boxes or cabinets to protect
sensitive electronic components, VpCI®-150 and VpCI®-170
offer low maintenance protection during operation,
shipping or storage. Not only do these unique tapes
provide vapor phase Corrosion Inhibitor protection,
but they also provide antistatic protection under
military specification MIL-B-81705C.
Cortec® VCI products prevent corrosion through
their unique VCI action. VpCIs, or vapor corrosion
inhibitors adsorb on to metal surfaces, creating a
molecular layer of protection. VpCI-150 and 170
are effective against a variety of corrosive agents,
including salt, airborne contaminants, H2S, SO2,
NH3 and others.
VpCI-150 protects up to 0.4 ft3 (11.3 liter) per linear
inch (2.5 cm). VpCI-170 protects up to 1 ft3 (28.3
liter) by volume per linear inch (2.5 cm).
VpCI®-150 and VpCI®-170 are extremely simple and
convenient to install. Simply select a space within any
enclosed device where corrosion protection would be
useful. Verify the surface to which the tape will be affixed
is clean and free of debris. Peel off the protective peel
strip from the bottom of the tape and attach it to the
clean surface.
VpCI®-150 and VpCI®-170 tapes can be installed in any
position. If the enclosure is not totally airtight, or if the
access doors are opened frequently, replace the
VpCI®-150 and VpCI®-170 tape more often than every 2
years. After periods of heavy maintenance replace the
tape. Additionally, spray the enclosure very lightly with
ElectriCorr® VpCI®-238 or VpCI®-239.
*For more information please contact our technical department
Color
Pale yellow
Biodegradability
N A
Service temperature
-40°F to +150°F
Density
N A
Dosage
0.4 ft3 per linear inch
NSN
8030-01-208-1769
MIL SPEC
MIL-B-22110
Packaging sizes
-6 units per carton
Non Adhesive VCI Emitters To use with VCI plastics and papers in storage and export shipments
Desicorr® VpCI®
Desicant Pouches Plus VCI Protection | Made in USA | Economical | One per ft3 | Up To Two Years Of Protection | Non Toxic

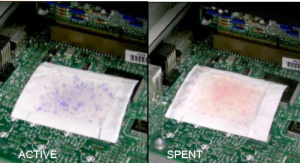

Desicorr® VpCI® is a specially designed, two-sided pouch containing a unique combination of desiccant and Vapor phase Corrosion
Inhibitor (VpCI®). Desicorr® VpCI® pouches are ideal for protecting
packaged ferrous and non-ferrous metals from corrosion.
Unlike conventional desiccants, the dual function of the Desicorr®
VpCI® pouches reduces moisture in the air (desiccant action) and
provides multi-metal protection (VpCI® action) within a package. In
essence, the desiccant action allows the VpCI® to have free access
to the surface of the metal, without competition from moisture on
the metal surface.
Dessicorr® VpCI® Pouches are available in both windowed and
non-windowed versions (NW). The windowed version contains
some indicator spheres that will change color from yellow to green
when the desiccant is fully spent.
Desicorr® VpCI® is designed to protect products, components, or
assemblies when packaged in corrugated boxes, plastic wrap or
bags, and wood or metal containers.
*For more information please contact our technical department
Color
White and green
Biodegradability
N A
Service temperature
-40°F to +150°F
Density
N A
Dosage
1/6 size takes one unit every ft3
1 size takes one unit every 5ft3
MIL SPEC
MIL-D-3464E, Type I & Type II
NSN
N A
GSA
N A
Packaging sizes
-300 Units per carton in 1/6 (1 ft3 of protected volume) and 1 (5 ft3 of protected volume) sizes

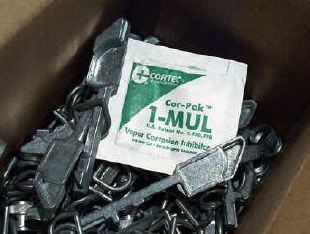

Cor-Pak® 1-MUL Pouches
VCI Emitter Pouches for small volumes | Economical | Multi-metal | Up To Two Years Of Protection | Made in USA | Non Toxic | One per ft3
Cor-Pak® 1-MUL Pouches contain VCI (Vapor phase
Corrosion Inhibitors) to protect ferrous and non-ferrous
metals from corrosion. Cor-Pak® 1-MUL Pouches are
approved for military use under NSN # 6850-01-
470-2737. The Tyvek® membrane allows VpCI®
molecules to reach the metal surface.
Cor-Pak® 1-MUL Pouches are designed to protect
products, components or assemblies when packaged in
corrugated boxes, plastic wrap or bags, and wood or
metal containers.
Manually or automatically insert a Cor-Pak® 1-MUL
Pouch into the package. Then simply close and seal the
package shortly thereafter. Each Cor-Pak® 1-MUL Pouch
protects up to 1.0 cubic foot (28 liters).
*For more information please contact our technical department
Color
White and green
Biodegradability
N A
Service temperature
-40°F to +150°F
Density
N A
Dosage
1 per ft3
NSN
6850-01-470-2737
MIL SPEC
MIL-I-22110C
GSA
8030012081769
Packaging sizes
-300 units per carton
Cor-Pak® 8-MUL Pouches
VCI Emitter Pouches for large volumes | Economical | Multi-metal | Up To Two Years Of Protection | Made in USA | Non Toxic | One per 8ft3
Cor-Pak® 8-MUL Pouches contain VCI (Vapor phase
Corrosion Inhibitors) to protect ferrous and non-ferrous
metals from corrosion. The Tyvek® membrane allows VpCI®
molecules to reach the metal surface.
Cor-Pak® 8-MUL Pouches are designed to protect
products, components or assemblies when packaged in
corrugated boxes, plastic wrap or bags, and wood or
metal containers.
Manually or automatically insert a Cor-Pak® 8-MUL
Pouch into the package. Then simply close and seal the
package shortly thereafter. Each Cor-Pak® 1-MUL Pouch
protects up to 1.0 cubic foot (28 liters).
*For more information please contact our technical department
Color
White and green
Biodegradability
N A
Service temperature
-40°F to +150°F
Density
N A
Dosage
1 per 8ft3
NSN
N A
MIL SPEC
MIL-I-22110C
GSA
N A
Packaging sizes
-150 units per carton
VpCI®-130 Series of VCI foam emitters
VCI Foam Emitters | Economical | Multi-metal | Up To Two Years Of Protection | Made in USA | Non Toxic | Various Sizes | Anti-static
VpCI®-130 Series Foams are unique flexible packaging
materials that combine VCI protection, and desiccant action;
plus excellent antistatic capabilities all in one step! You can now
eliminate expensive and messy rust preventatives with VpCI®-130
Series Foams. Parts protected are always ready for use; no degreasing or coating removal is required. Application of multifunctional
materials such as VpCI®-130 Series Foams results in significant
weight and labor savings. VpCI®-130 Series Foams contain approximately ten (10) times
more VpCI® chemical per square foot (square meter) of substrate
than the traditional VCI papers and other wrapping materials. This
makes the protection of objects with large surface areas possible
(i.e.: aluminum and steel coils). The unique combination of high
and low vapor pressure VpCIs contained in VpCI®-130 Series
Foams affords long-term protection for large export packages,
crates, and seagoing containers.
Combine VpCI®-130 Foam with Cortec® VpCI®-125/126 film to
create a highly effective VpCI® packaging solution.
VpCI®-130 Series Foam forms a strong protection as long as the
enclosure remains sealed and there are no barriers between the
metal surface and the VpCI® molecules. The placement of the foam
is not important as long as it has access to the same air space as
the metal to be protected. This product line is not intended to be
used for cushioning purposes; excess pressure applied to the foam
can wring the inhibitor from the substrate. In some situations this
may leave a residue on the surface which will need to be removed
with water or rubbing alcohol.
*For more information please contact our technical department.
Color
Pale yellow foams
Biodegradation
N A
Service temperature
-50°F a 150°F
Density
N A
Dosage
-VpCI®-131 one every 1.5 ft3
-VpCI®-132 one every 8 ft3
-VpCI®-136 one every 0.25 ft3
-VpCI®-137 protects 10ft3/ft2
NSN
#3850-01-426-3539
MIL SPECS
MIL-PRF-26514G (T 3) (CLS II) (A)
Packaging sizes
-VpCI®-131 (size:2"x10"x0.25" each for 1.5 ft3) 250 units x ctn
-VpCI®-132 (size:11"x22"x32" each for 8 ft3) 250 units x ctn
-VpCI®-136 (size:1"x1"x0.25" each for 0.25 ft3) 1000 units x ctn
-VpCI®-137 (size:132'x54"x0.25" each for 10ft3/ft2) 1 unit x ctn
BioPad® Series of VCI emitters
VCI Thin Pad Emitters | Economical | Multi-metal | Up To Two Years Of Protection | Made in USA | Non Toxic | Various Sizes | Biodegradable | Thin Profile | Anti-static
BioPad® is a unique flexible
corrosion inhibiting device constructed from biobased non-woven material. BioPad® provides
an eco-friendly sustainable
packaging option for corrosion
inhibition. Its high VpCI® concentration, in combination with
thin design, results in material
reduction by up to 94% in comparison to similar polyurethane
foam emitting devices.
BioPad® is easy to use. Simply
placing the correct size BioPad®
into your package will allow
metal items to be protected.
Parts protected with BioPad®
are always ready for use; no
degreasing or coating removal
is required; just remove the
item from the package and put
to use.
BioPad® is specially designed with Vapor phase Corrosion Inhibitors impregnated
throughout the substrate. BioPad® is excellent for protection of ferrous and non-ferrous metals as well as various alloys (steel, copper, brass, aluminum, zinc, etc.).
*For more information please contact our technical department.
Color
Pale yellow pads
Biodegradation
100%
Service temperature
-50°F a 150°F
Density
N A
Dosage
-BioPad® 2”x6”
Protects up to 1.5 ft3 (0.042 m3) per unit
BioPad® 8”x8”
Protects up to 8 ft3 (0.23 m3) per unit
BioPad® Roll
Protects up to 15 ft3 per ft2 of material (4.57 m3/m2)
NSN
N A
MIL SPECS
N A
Packaging sizes
-BioPad® 2”x6” 250/carton
BioPad® 8”x8” 250/carton
BioPad® Roll one/carton

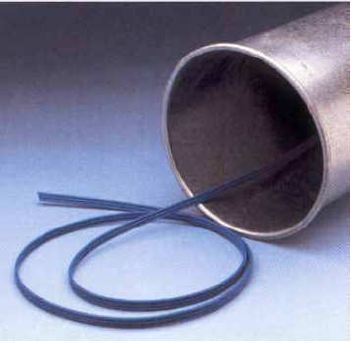

Cortec® CorroLogic® Tube Strips
Anti Rust VCI Strip for Pipes | Economical | Multi-metal | Up To Two Years Of Protection | Made in USA | Non Toxic | Anti Rust Protection For Pipes Up To 6 Inches Section | Recyclable | Strippable | Pipe and Rifling protection
CorroLogic® Tube Strips powered by Nano VpCI® is designed for
protection of tubes, pipes, or conduits in storage or during shipping.
Using VpCI® technology, CorroLogic® Tube Strips powered by Nano
VpCI® makes it possible to protect the interior of a tube or pipe
against corrosion without expensive internal coatings. The flexible
strip has a 1/3 inch diameter (8.5 mm). It is extruded from low
density polyethylene containing a proprietary VpCI® compound
designed for rust protection of ferrous and non-ferrous metals and alloys.
CorroLogic® Tube Strips powered by Nano VpCI® is placed inside
the tube or pipe, which is then capped or sealed. The length of Pipe
Strip should equal the length of pipe. Within hours, the vapors from
the Pipe Strip saturate the enclosed air space. Even in the presence
of water vapor (high humidity conditions), the VpCI® vapors protect
the metal surface, thus halting the process of corrosion.
*For more information please contact our technical department.
Color
Blue
Biodegradation
Not degradable
Service temperature
-50°F a 150°F
Density
N A
Dosage
-CorroLogic® Tube Strips powered by Nano VpCI® is recommended
only for pipe diameters up to 6 inches (15.2 cm)
NSN
N A
MIL SPECS
N A
Packaging sizes
-CorroLogic® Tube Strips powered by Nano VpCI® comes in standard
500 feet (152 m) rolls.
Cortec® Logo is registered trademark of Cortec® Corporation. VpCI®, MCI®, EcoClean®, EcoAir®, BioCorr®, Boiler Lizard®, Boiler Egg®, Boiler Dragon®, BioCorr® and Ecoline® are registered trademark of Cortec® Corporation.
Tyvek® and DuPont™ are trademarks or registered trademarks of E. I. du Pont de Nemours and Company or its affiliates.
