Cortec’s VpCI® coated anticorrosion papers offer renewable, recyclable, and fully-repulpable corrosion protection. VpCI® anti rust papers are coated with proprietary Vapor phase Corrosion Inhibitors for corrosion protection of both ferrous and non-ferrous metal. Made from high quality neutral natural kraft paper, these papers do not contain fluorochemicals, nitrites, phosphates, silicones, chromates, or other heavy metals.
Cortec® VpCI® papers are effective against aggressive environments including humidity, SO2, and H2S.
Cortec® VpCI® corrosion preventive papers are simple to use: Simply wrap or interleave your metal parts in VpCI® paper and fold the edges together so there is no free airflow. Use adhesive tape as needed to hold paper folds in place. VpCI® molecules in the paper coating vaporize and condense in a protective molecular layer on the surfaces of metal enclosed inside the paper packaging. When components are removed from the paper, they are dry and ready-to-use.
Cortec® VpCI® anti rust papers are available in Rolls and Sheets in a wide variety of sizes.
Cortec® is the only manufacturer of rust preventatives in the world that is completely vertically integrated. That means that everything is made under the same roof: from the base chemistry of the inhibitors to the end product (vci films/ vci papers) and so the quality is monitored every step of the way.
The "Razor Blade Test" is a quick laboratory test with a pass or fail rating — if corrosion exists after the set time frame, the product fails. The Razor Blade Test essentially tests the contact corrosion-inhibiting ability of a material. It is conducted on test coupons and on multiple types of metal to determine the ability of a packaging product to prevent rust by direct contact to a certain type of metal. It is done three times to test bits of sample from a large surface area so that it can also provide information on how even the distribution of the corrosion inhibitor is on the material being tested. The figure shows images of typical results for VpCI®-126 and VpCI®-146 against a control group (the control group is a plastic or paper with no corrosion prevention properties in direct contact with metal subject to this same test).
Second, Federal Standard 101c, the German VIA
Test, is used to determine if a corrosion-inhibiting
compound will protect a metal when the compound
is never in contact with the metal. For this test, the corrosion-inhibiting compound is placed in a glass
jar. A metal slug is placed in a rubber gasket
attached to the lid, so it is prevented from coming in
contact with the corrosion-inhibiting product. Also, the interior of the jar is previously saturated with moisture and the test subject is allowed time to "emit" the volatile corrosion inhibitors to the enclosed atmosphere. This
is shown in the top figure to the left of this text. The second figure shows typical results for VpCI®-146 or VpCI®-126 against a control group (the control group is a plastic or paper with no corrosion prevention properties made subject to this same test).
Once again the test is done three times out of different samples to ensure that the vapor phase rust prevention properties are evenly present through the area of the test subject.
Cortec® Corshield® VpCI®-146 is the premium rust inhibitor kraft paper in the industry. Made from neutral natural kraft coated with Vapor phase Corrosion Inhibitors for protection of ferrous and non-ferrous metals. Ideal for single item packaging, interleaving, shipping tube end closures and liners. Effective against aggressive environments, including humidity, SO2, H2S and galvanic corrosion from dissimilar metals. Fully recyclable/repulpable kraft paper.
CorShield® VpCI®-146 is the
premium corrosion inhibiting
kraft paper in the industry. It relies on
Cortec’s patented Vapor phase
Corrosion Inhibiting Technology,
which has revolutionized the
way metals are protected in an
enclosed package.
Both sides of CorShield® VpCI®-
146 paper offer effective
protection to ferrous and nonferrous metals, eliminating the
need to stock a variety of papers
for different metal types. All
that is needed is to wrap items
in the paper and fold the edges
together, using adhesive tape as
needed to hold paper in place.
The VpCI® coating on the paper
vaporizes, reaching all metal
surfaces within the package
to provide complete corrosion
protection with a very thin, very
effective VpCI® layer that does
not alter product appearance or
require removal before further
finishing or use.
CorShield® VpCI®-146 paper
is made from 100% recycled
content paper and is fully
recyclable/repulpable. It contains
92% USDA certified biobased
content and is a qualified product
under the mandatory federal
purchasing initiative of the USDA
BioPreferred® Program.*
*For more information about the BioPreferred® Program, please visit: https://www.biopreferred.gov
Cortec® CorShield® VpCI®-146 Reinforced Paper is made of neutral natural kraft paper with fiberglass reinforcement, coated with Vapor phase Corrosion Inhibitors. It is used in packaging of metals with pointed, odd shapes or sharp edges where puncture would be an issue with non-reinforced papers. Effective against aggressive environments, including humidity, SO2, H2s and galvanic corrosion from dissimilar metals.
CorShield® VpCI®-146 Reinforced Paper is the premium corrosion
inhibiting reinforced paper in the industry. Our patented Vapor
phase Corrosion Inhibiting technology has revolutionized the way
metals are protected in an enclosed package. CorShield® VpCI®-
146 Reinforced Paper provides superior corrosion protection for
both ferrous and non-ferrous metals. CorShield® VpCI®-146
Reinforced Paper eliminates the need to stock a variety of papers
for all the different types of metals and alloys you need to protect.
Additionaly, CorShield® VpCI®-146 Reinforced Paper is non-toxic
and doesn’t contain any nitrites, phosphates, silicates or other
hazardous compounds.
CorShield® VpCI®-146 Reinforced Paper is made from the highest
quality neutral natural kraft paper and has excellent tear resistance.
There are no chemical concentrations to calculate, no chemical
tanks or application system to maintain. Just wrap your products
in the paper, and fold edges together. Use adhesive tape as
needed to hold paper folds in place. The VpCI® coating on the
paper vaporizes, reaching all metal surfaces to provide complete
corrosion protection. The unique inhibiting action of the VpCI®
forms a very thin and very effective protective layer that does not
alter the appearance of products or require removal.
For more information please contact our technical department.

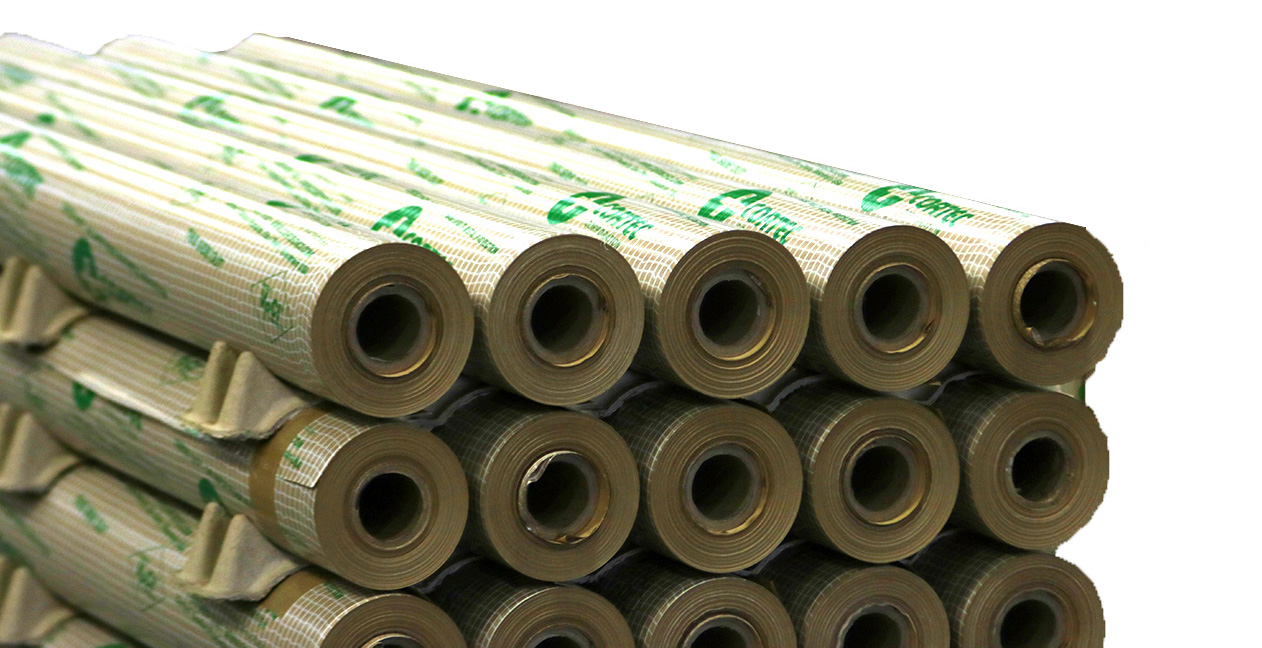

| VCI Reinforced Paper Rolls Standard Sizes, 100 lb/3000 ft2 |
|---|
| 98.5" x 350' (250.19cm x 106.68m) |

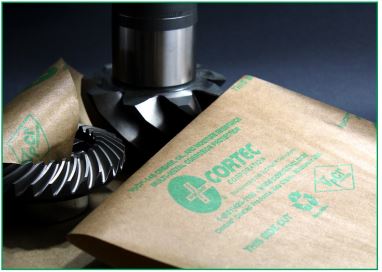

Cortec® VpCI®-148 is an improved grease resistant corrosion inhibiting paper. It provides resistance to greases, oils and solvents. Oil is not absorbed on the paper, but it is left captive on the metal surface. Does not create hazardous waste and it is an eco-friendly alternative to traditional grease resistant papers. Protects dry or oiled metals against aggressive environments, including humidity, SO2, H2s and galvanic corrosion from dissimilar metals. Fully recyclable/repulpable.
Cortec® VpCI®-148 is a new and improved grease resistant corrosion inhibiting polycoated paper. In addition to its excellent corrosion inhibiting
properties, VpCI®-148 also provides resistance to greases, oils,
and solvents. Unlike wax or polycoated papers, which contribute to
environmental problems, VpCI®-148 contains a biobased coating
and is fully recyclable/repulpable.
Cortec® VpCI®-148 Paper is made from neutral, natural Kraft
paper, and is fluorochemical free, providing an environmentally
friendly alternative to traditional grease resistant papers.
For more information please contact our technical department.
| VCI Paper Rolls Custom Made Standard Sizes, 35 lb/3000 ft² (64 g/m²) |
|---|
| 12” x 600’ (60.1 cm x 182.9 m) |
| 18” x 600’ (45.7 cm x 182.9 m) |
| 24” x 600’ (60.1 cm x 182.9 m) |
| 36” x 600’ (91.4 cm x 182.9 m) |
| 48” x 600’ (121.9 cm x 182.9 m |
| 36” x 1200’ (91.4 cm x 365.76 m |

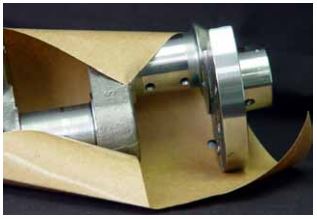

Cortec® Cor-Pak® VpCI® Polycoated Paper is coated with a polyethylene coating to provide a moisture barrier and/or moisture-vapor barrier for extra protection of packaged metals. Effective against aggressive environments, including humidity, SO2, H2s and galvanic corrosion from dissimilar metals.
Cor-Pak VpCI Polycoated Paper is the premium corrosion
inhibiting polycoated paper in the industry. Our
patented Vapor phase Corrosion Inhibiting technology
has revolutionized the way metals are protected in an
enclosed package. Cortec Cor-Pak VpCI Polycoated
Paper provides superior corrosion protection for both
ferrous and non-ferrous metals, which eliminates the need
to inventory a variety of papers for all the different types
of metal you need to protect.
In addition, Cor-Pak VpCI Polycoated Paper is coated with
a polyethylene coating, to provide a moisture barrier
and/or moisture-vapor barrier.
For more information please contact our technical department.
| VCI Polycoated Paper Rolls Standard Sizes, 40 lb/3000 ft2 plus PE 6 lb/3000ft2 |
|---|
| 48” x 600’ (121.9 cm x 182.9 m) |

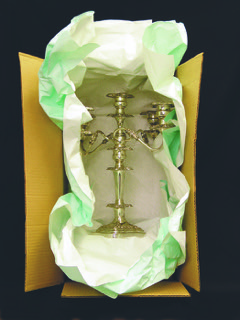

Cortec® Corrosorber® VpCI® Paper is a tarnish inhibiting packaging paper for precious metals such as silver, gold and tin. One side of the paper has a coating that scavenges or seeks out H2S gas. When a significant amount of H2S gas has been absorbed by the paper, the paper will change color from light green to brown. The other side of the paper is a tarnish inhibitor that will protect up to two years or until the opposite side has changed color. Ideal for electrical and electronical components and for finished products like silverware, jewelry box linings and wrapping of precious metals. Special Anti-Tarnish Packaging for Silver Parts and jewelry.
Corrosorber® VpCI® Paper is a tarnish inhibiting packaging
paper specifically for precious metals such as silver, gold,
and tin. Corrosorber® VpCI® Paper is a unique product; one
side of the paper has a special coating that scavenges or
seeks out H2S gas. When a significant amount of
H2S gas has been absorbed by the paper, the paper will
change color from light green to brown. On the other
side of Corrosorber VpCI® Paper, is a tarnish inhibitor that
will protect precious metals for up to two years or until the
opposite side of the paper has significantly changed color
from light green to brown. Corrosorber® VpCI® Paper will
eliminate the need for coatings and tarnish removers that
are often associated with precious metals. Rest assured,
knowing that your valuable precious metals will have the
same exact appearance as prior to using Corrosorber® VpCI® Paper. Corrosorber VpCI® Paper is simple to use,
simply wrap your precious metals and fold edges together
so there is no free airflow. The VpCI® coating on the paper
vaporizes reaching all metal surfaces to provide complete
tarnish inhibition. With many tarnish inhibitors there is
a need to remove after use, but with Corrosorber VpCI®
Paper there is no removal needed of the inhibitor. Corrosorber® VpCI® Paper will in no way affect further processing
of the precious metal or affect physical properties such as
conductivity or surface resistivity.
For more information please contact our technical department.
| VCI Corrosorber Paper Rolls Standard Sizes, 40 lb/3000 ft2 |
|---|
| 48” x 600’ (121.9 cm x 182.9 m) |
Cortec® Corshield® VpCI®-146 is the premium corrosion inhibiting paper in the industry. Made from neutral natural kraft coated with Vapor phase Corrosion Inhibitors for protection of ferrous and non-ferrous metals. Ideal for single item packaging, interleaving, shipping tube end closures and liners. Effective against aggressive environments, including humidity, SO2, H2s and galvanic corrosion from dissimilar metals. Fully recyclable/repulpable.
CorShield® VpCI®-146 is the
premium corrosion inhibiting
paper in the industry. It relies on
Cortec’s patented Vapor phase
Corrosion Inhibiting Technology,
which has revolutionized the
way metals are protected in an
enclosed package.
Both sides of CorShield® VpCI®-
146 paper offer effective
protection to ferrous and nonferrous metals, eliminating the
need to stock a variety of papers
for different metal types. All
that is needed is to wrap items
in the paper and fold the edges
together, using adhesive tape as
needed to hold paper in place.
The VpCI® coating on the paper
vaporizes, reaching all metal
surfaces within the package
to provide complete corrosion
protection with a very thin, very
effective VpCI® layer that does
not alter product appearance or
require removal before further
finishing or use.
CorShield® VpCI®-146 paper
is made from 100% recycled
content paper and is fully
recyclable/repulpable. It contains
92% USDA certified biobased
content and is a qualified product
under the mandatory federal
purchasing initiative of the USDA
BioPreferred® Program.*
For more information please contact our technical department.
*For more information about the BioPreferred® Program, please visit: https://www.biopreferred.gov
Cortec® Cor-Pak® VpCI® Polycoated Paper is coated with a polyethylene coating to provide a moisture barrier and/or moisture-vapor barrier for extra protection of packaged metals. Effective against aggressive environments, including humidity, SO2, H2s and galvanic corrosion from dissimilar metals.
Cor-Pak VpCI Polycoated Paper is the premium corrosion
inhibiting polycoated paper in the industry. Our
patented Vapor phase Corrosion Inhibiting technology
has revolutionized the way metals are protected in an
enclosed package. Cortec Cor-Pak VpCI Polycoated
Paper provides superior corrosion protection for both
ferrous and non-ferrous metals, which eliminates the need
to inventory a variety of papers for all the different types
of metal you need to protect.
In addition, Cor-Pak VpCI Polycoated Paper is coated with
a polyethylene coating, to provide a moisture barrier
and/or moisture-vapor barrier.
Cortec Cor-Pak VpCI Polycoated Paper is produced
with the highest quality neutral natural kraft paper, and
offers exceptional resistance to water, oil, and grease.
Parts protected with Cor-Pak VpCI Polycoated Paper can
be painted, welded, and soldered. The thin protective
film doesn’t influence the physical properties of most
sensitive electrical and electronic components; including
conductivity and resistance. In addition, the paper
basestock for the VpCI coating is produced with closely
packed cellulose fibers which form a relatively nonpermeable sheet.
For more information please contact our technical department.

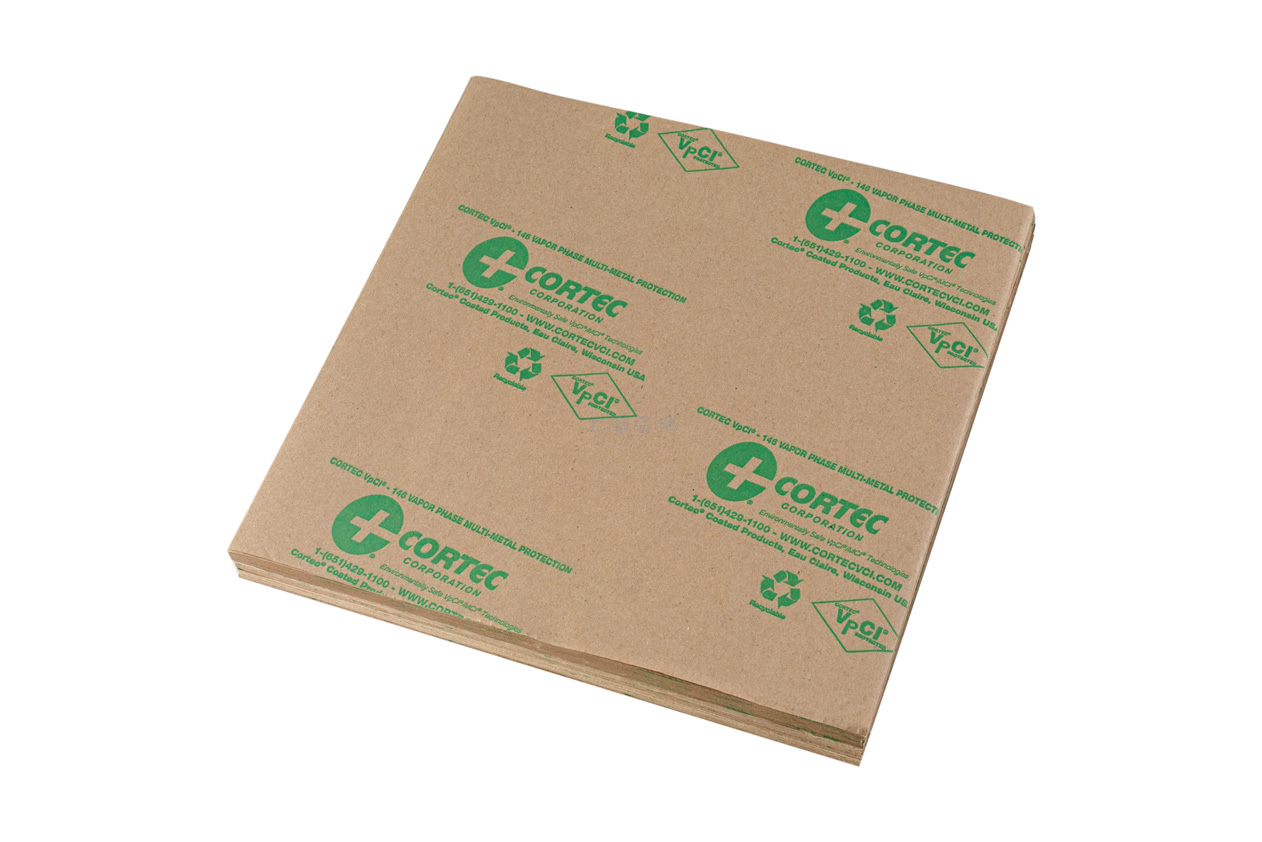

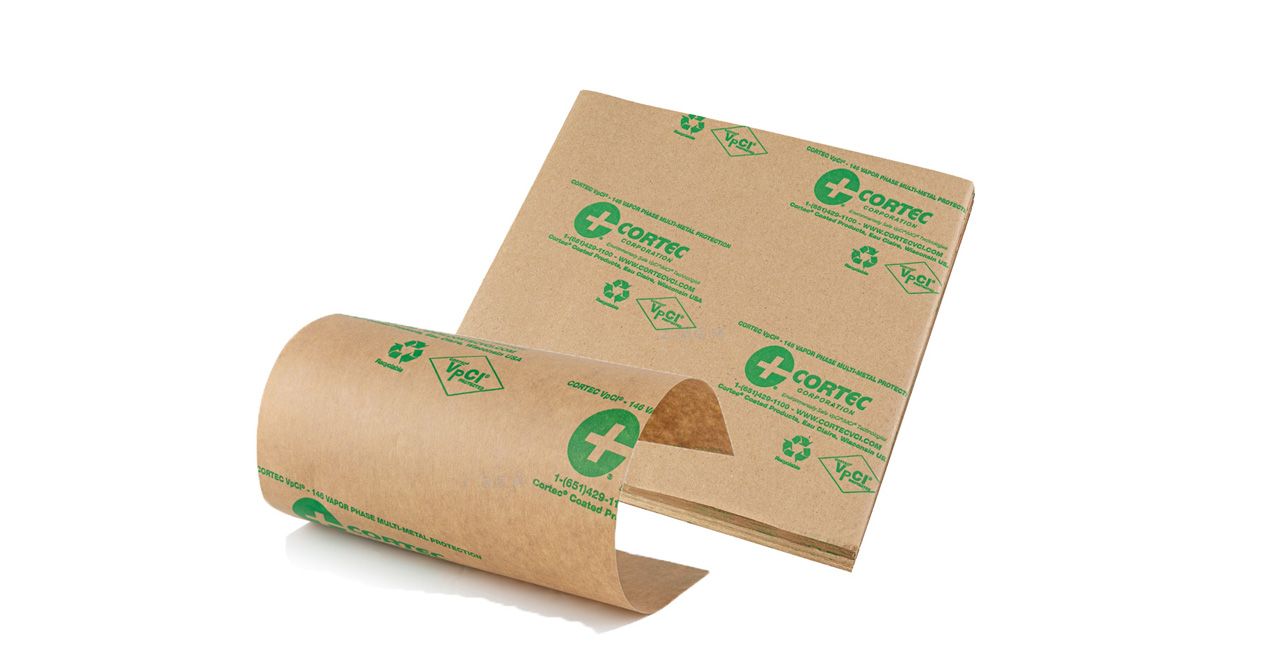

| VCI Polycoated Paper Sheets Custom Standard Sizes, 40 lb/3000 ft² (70 g/m²) plus 6 lb/3000 ft² of PE | |
|---|---|
| 6” x 6” (15.2 cm x 15.2 cm) | 3000 Pack |
| 9” x 9” (22.9 cm x 22.9 cm) | 2500 Pack |
| 12” x 12” (30.5 cm x 30.5 cm) | 2500 Pack |
| 16” x 16” (40.6 cm x 40.6 cm) | 1000 Pack |
| 18” x 18” (45.7 cm x 45.7 cm) | 1000 Pack |
| 24” x 24” (61 cm x 61 cm) | 1000 Pack |
| 36” x 36” (91.4 cm x 91.4 cm) | 1000 Pack |
