VCI Sprays and Aerosols

Rust Prevention Spray | Anti Rust Spray Based On VCI Technology | Powered by nano-VpCI® | Water Based | Oil Based | Electronics Rust Inhibitor Spray

ECOAir® VCI Valve-On-Bag Aerosol| ECOSpray® Non Hazardous For Transport | Rust Inhibitor Sprays With VCI Technology

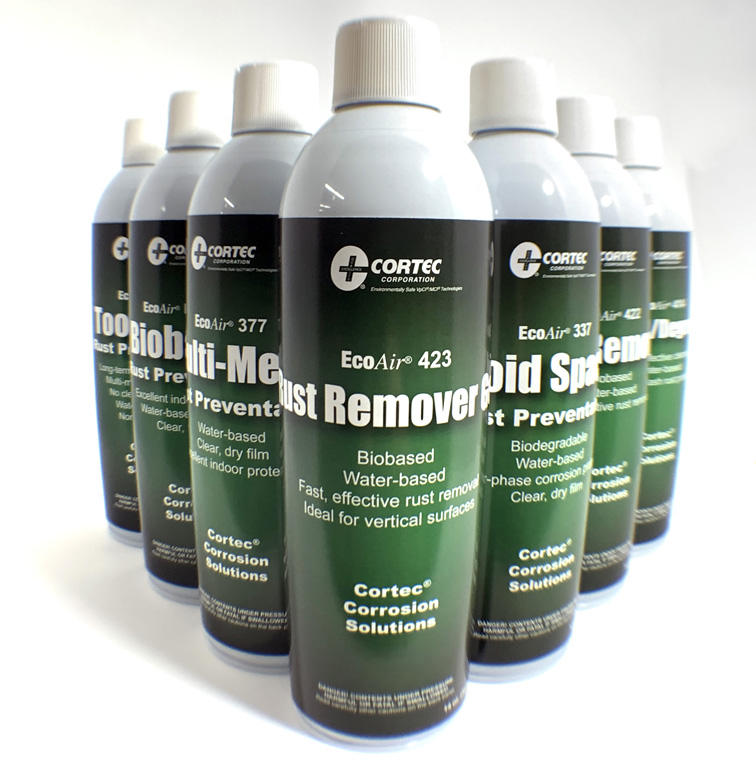

EcoAir Spray Technology
EcoSpray Technology


EcoAir In Spray Technology

We are proud to introduce a major step forward in the Rust Prevention Spray can technology -- EcoAir®-- airpowered spray can products. For the first time, we are providing spray cans powered by compressed air that completely replace expensive chemical propellants. This technology is innovative because a four-layer EcoPouch is inserted into a can then the can is pressurized. Finally, the EcoPouch is filled with the liquid. As the valve is depressed the surrounding pressure expels the bag’s internal fluids until the product is used up.

Best Features About This Spray Technology Are:

• No chemical propellants
• Non-flammable
• Able to spray in any direction, even upside down.
• No product contamination by propellant.
• Safer to ship and store, with very low or no environmental impact.
• Unique water-based products

Environmentally Safe
EcoAir® products do not contain propellants, CFCs, or HCFCs that affect the atmosphere, the ozone layer, or the environment. EcoAir® products are formulated with biodegradable, nonpolluting ingredients. EcoAir® eliminates waste disposal cost.

Environmentally Tested
EcoAir® products attack the toughest maintenance duties with respect for the environment. They incorporate non-toxic, biodegradable chemicals without traditional aerosols, propellants, or ozone depleting CFCs. Fast-acting, dependable, and safe to handle, EcoAir® leads the way in environmentally safe corrosion protection technology.
User Safe
EcoAir® products are specially formulated to improve safety for the consumer as well as the environment. These safety improvements are reflected in the HMIS ratings for each product shown (see chart below). The products do not contain 1,1,1 trichloroethane, methylene chloride, or chlorinated solvents.
Packaging
EcoAir® products are packaged in 10-14 oz. net wt. (284 - 397 g) cans, 12 cans per carton.





Spray Technology Suitable To Ship By Any Mean

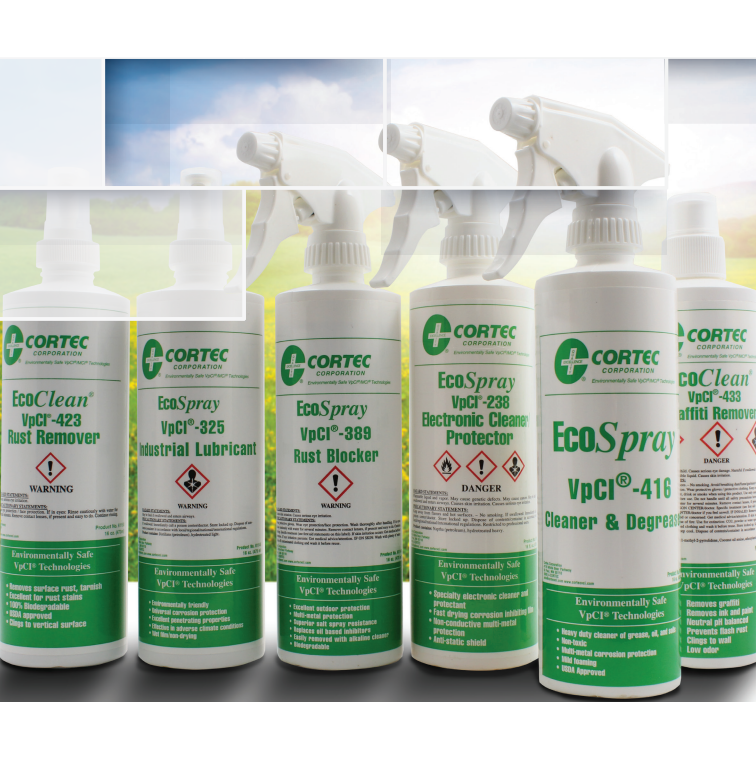

EcoSpray™ and EcoClean® corrosion protection and cleaning products do not contain propellants, CFCs, or HCFCs that affect the atmosphere, ozone layer, or environment. When possible, EcoSpray™ and EcoClean® products are formulated with ingredients rated for their biodegradability and non-polluting characteristics, minimizing waste disposal.

Best Features About This Spray Technology Are:


Safer for storage*
EcoSpray™ and EcoClean® products have no storage or added fire insurance restrictions. They can be stored like any non-aerosol lubricant or cleaner at room temperature. Do not let product freeze.

Safer for shipping*
EcoSpray™ and EcoClean® products are non-hazardous for transport and can be shipped by air freight or any other conventional shipping method.
Environmentally Friendly Spray Technology
EcoSpray™ and EcoClean® products attack the toughest maintenance duties with respect for the environment. Where possible, they incorporate non-toxic, biodegradable chemicals without aerosols, propellants, or ozone-depleting CFCs. Fast-acting, dependable, and safe to handle, EcoSpray™ and EcoClean® lead the way in environmentally safe technology
Safer for the user
EcoSpray™ and EcoClean® products have been specially formulated to improve safety for the consumer as well as the environment. The products do not contain 1,1,1 trichloroethane, methylene chloride, or chlorinated solvents.
Packaging
EcoSpray™ and EcoClean® products are packaged in 16 fluid ounce (0.5 liter) recyclable bottles, 12 bottles per carton.**


Wax Based VCI Anti Rust Sprays

VpCI®-368D | Corshield® VpCI®-368

Wax-based Anti Rust Removable Coating For Outdoors Protection | Ready to Use | Rust Inhibitor Wax | Rust Prevention Spray | Made In USA | Mutimetal | Dry Wax Anti Rust Spray | Bulk And Aerosol
vpci-368 anti rust wax spray

VpCI®-368D is a fast drying, wax and solvent-based ready to use removable anti rust coating that provides protection in harsh, outdoor, unsheltered applications yet is easily removed with alkaline cleaners such as VpCI®-414. Provides multi-metal protection. Can be matched to some custom colors. Dry wax rust prevention spray version available for easy application. Provides ferrous and non ferrous metals with powerful rust inhibition.
Commercial equivalent to MIL – PRF – 16173E (Grades 1 & 2), NATO 6850-66-132-5848, 6099, NSN 8030-00-062-6950, 231- 2345, 244-1300, 470-2601.

Appearance Brown grease like substance
Film Type Waxy
Flash Point 158 °F (70 °C)
Removal Methods Alkaline cleaners and solvents (VpCI-414)
Density 7.51 lbs/gal (0.90 kg/L)
VOCs (ASTM D3960) 3.8 lbs/gal (464 g/L)
Solids Volume 39.22%
Carrier Solvent
Spread rate 629 sq.ft./gal @ 1.0 mils DFT (15.4 sq.m/L @ 25 μm)
Recommended DFT 2.0-3.0 mils (50-75 μm)
Dry to Handle 60 min
Salt Spray Resistance 1500 hs


Packaging

VpCI®-368D is packaged in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, totes, and bulk. Also in available in 11oz Aerosols, 6 cans per carton.







Water Based VCI Anti Rust Sprays

We are currently offering the easiest alternatives to add VCI anti rust protection for void spaces with renewable and safe formulation which are now easier to apply thorugh EcoSpray® technology. These products have a very long and positive international track record protecting high value assets exposed to extremely corrosive influences.

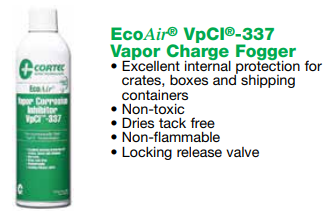

EcoAir® VpCI®-337

Pure VCI In Water Solution Anti Rust Spray | Rust Inhibitor Spray With High Vapor Phase Action | Water-based VCI Fogger Spray| Biodegradable
Water based VCI rust preventative spray

EcoAir® VpCI®-337 is a ready-to-use waterborne corrosion inhibitor used primarily for robust anti rust effect on internal void spaces. Vapor phase Corrosion Inhibitors (VpCI®) in EcoAir® VpCI®-337 migrate to protect metal surfaces resulting in time and cost savings. When combined with labor-saving techniques, minimum amount of product can be used to protect large areas or volumes against rust. EcoAir® VpCI®-337 is effective on multiple metals.
EcoAir® VpCI®-337 is a combination of contact and vapor corrosion inhibitors, which allows a wide range of uses; from low-dose voidspace protection to steel coil edge spray.
Biodegradable (87% biodegradation in 28 days)

Appearance Clear to hazy amber liquid
Film Type Thin, soft film
Flash Point >200 °F (93 °C)
Removal Methods Alkaline cleaners and solvents (VpCI-416/VpCI-419)
Density 8.7-8.9 lb/gal (1.04-1.06 kg/l)
pH 7.2-9.0 (neat)
Freeze Point 32 °F (0 °C)
Carrier Water
Dosage 0.5-1.0 oz./ft3 (0.5-1.0L/m3 )


Packaging

EcoAir® VpCI®-337 Fogger is packaged in 13 oz. (369 g). Bag on Valve Aerosols





Oil Based VCI Rust Inhibitor Sprays

Renewable Oil based rust inhibitor products powered by Nano-VpCI® are a very desirable way to apply corrosion protection to metal parts. Oil based products require less surface preparation, and prevent finger print corrosion. On top of this, we are now able to include renewable oils in these RPs' formulations which leads to less environmental impact and higher flash points. Having these type of products in EcoSpray® bottles allows to ship the products world wide by any means necessary to deploy on the field as soon as possible.

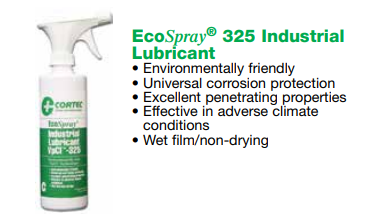

EcoSpray® VpCI®-325

VCI Renewable Oil based Rust Inhibitor Spray | Solvent/ Vegetable Oil VCI Spray| Partially Biodegradable
Oil based VCI rust preventative spray

EcoSpray® VpCI®-325 is a ready-to-use vegetable oil/solvent-based liquid for general purpose corrosion protection in a wide variety of applications. Some of these include protection of sheet metals, wire, pipes, flanges, and other fabricated and/or machined parts, guns, and a host of other products. EcoSpray® VpCI®-325 protects against rust and works as an excellent lubricant that performs effectively, even under the adverse condition of high relative humidity and in the presence of such corrosive elements as chlorides, hydrogen sulfide, and other sulfur compounds.
EcoSpray® VpCI®-325 is based on a vegetable derived, biodegradable vci oil anti rust spray cans. EcoSpray® VpCI®-325 forms a film on the metal surface and protects in two ways: first, oil-soluble safe rust inhibitors offer a tenacious film which clings to metal surfaces. VpCI®-325 also provides dependable and complete water displacement from the metal surface to prevent corrosion.

Appearance Tan to light brown slightly viscous liquid
Film Type Oily
Flash Point 170 °F (77 °C)
Removal Methods Alkaline cleaners and solvents (VpCI-416/VpCI-419)
Density 6.8-7.0 lb/gal (0.82-0.84 kg/l)
Freeze Point N A
Carrier vegetable oil/ solvent
Non-volatile Content 33 - 42%


Packaging

EcoSpray® VpCI®-325 is packaged in 16 fl. oz. (473 ml) bottles with spray nozzles

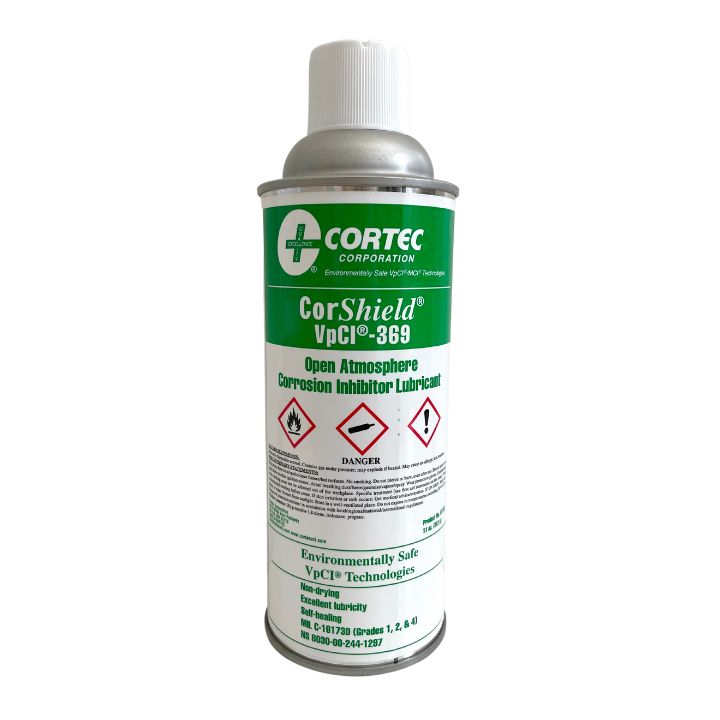

VpCI®-369 | Corshield® VpCI®-369

Oily Film Removable Anti Rust Coating For Outdoors Protection | Rust Inhibitor | Made In USA | Mutimetal | Bulk And Aerosol
corshield vpci-369

Corshield® VpCI®-369 is an oil-based temporary anti rust wet film oil based coating that provides protection in outdoor applications**. Provides multimetal protection. Can be matched to some custom colors.
Commercial equivalent to MIL – PRF – 16173E (Grades 2), NSN 8030-00-244-1295, 244-1297, 244-1298, 01-149-1731.
**For best results, provide sufficient shelter to avoid coating removal in splash zones, heavy rains, or similar conditions.

Appearance Viscous Brown Oil
Film Type Oily
Flash Point 248 °F (120 °C)
Removal Methods Alkaline cleaners and solvents (VpCI-414)
Density 0.9-1 g/cm3 (7.5-8.4 lbs/gal)
VOCs (ASTM D3960) 0 lbs/gal (0 g/L)
Solids Volume 99.2%
Carrier Mineral Oil
Spread rate 1588 sq.ft/gal @ 1.0 mils DFT (38.9 sq.m/L @ 25 μm)
Recommended DFT 1.0-3.0 mils (25-75 μm)
Dry to Handle N A
Salt Spray Resistance 500 hs


Packaging

VpCI®-369 is packaged in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, totes, and bulk. CorShield® VpCI®-369 is also available in 11 oz. (312 g) aerosol cans.







VCI Rust Preventative Sprays For Protection Of Electric And Electronic Equipment

Sometimes a VCI Emitter may need some help and that is why Electricorr® VpCI® anti rust sprays were born. These multifunctional products can provide both contact and vapor phase multimetal corrosion protection to electric and electronic equipment during operation or shipping/ storage. These products also tend to have cleaning properties becoming very handy for every day maintenance of electric equipment and powerboxes.

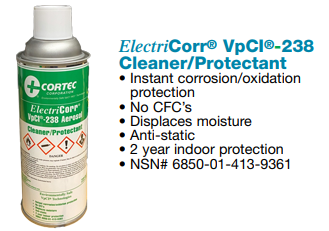

Electricorr® VpCI®-238

Multi-Metal Electronic Cleaner and Rust Prevention Spray | CFC- and 1,1,1-Trichlorethane-free | NSN #6850-01-413-9361 (aerosol form)
Electronic cleaner and VCI rust preventative spray

ElectriCorr® VpCI®-238 is an electronic cleaner containing Vapor phase Corrosion Inhibitor (VpCI®). This cleaner is specifically formulated for electrical/ electronic equipment, and components.
ElectriCorr® VpCI®-238 forms a thin film of Vapor phase Rust Inhibitors effective against aggressive environments including industrial, marine, and tropical climates. This film does not alter the electrical resistance or magnetic properties of metal substrates. ElectriCorr® VpCI®-238 anti rust can be safely applied to protect circuits or relays without causing any changes in conductivity. It can be safely used with most plastics, elastomers, and other nonmetallics.
ElectriCorr® VpCI®-238 is an effective inhibitor of galvanic corrosion for most metals and alloys normally found in electronics applications, such as aluminum, copper, ferrous, and other non-ferrous metals. ElectriCorr VpCI®-238 is free of CFCs and 1,1,1-Trichlorethane. Application provides instant corrosion protection. In cases where severe corrosion may occur, ElectriCorr® VpCI®-238 can be used along with VpCI®-100 series impregnated foam devices for extended protection.

Appearance Clear yellow liquid
Film Type Dry
Flash Point 143 °F (62 °C)
Removal Methods Alkaline cleaners and solvents (VpCI-416/VpCI-419)
Density 6.5-6.8 lb/gal (0.77-0.81 kg/l)
Freeze Point N A
Carrier Solvent
Non-volatile Content 7 - 10%


Packaging

Electricorr® VpCI®-238 is packaged in cartons of six 9.45 oz (267.75 gram) aerosol cans

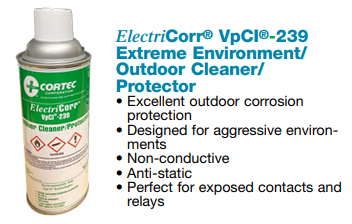

Electricorr® VpCI®-239

Multi-Metal High Performance Electronic Cleaner and Rust Prevention Spray | CFC- and 1,1,1-Trichlorethane-free
Electronic cleaner and VCI rust preventative spray

ElectriCorr® VpCI®-239 is a multifunctional outdoor cleaner/ corrosion protector. Its continuous Vapor phase Rust Inhibitor action saves money by extending product life and eliminating downtime due to corrosion. ElectriCorr® VpCI®-239 forms a very thin film proven effective against aggressive conditions including industrial, marine, and tropical regions. This film does not alter the electrical resistance or magnetic properties of metal substrates. ElectriCorr® VpCI®-239 can be safely applied for the corrosion protection of electronic circuits or relays without causing any significant changes in conductivity. ElectriCorr® VpCI®-239 can be safely used with most plastics, elastomers, and other non-metallics. In addition to corrosion protection, ElectriCorr® VpCI®-239 is an excellent contact cleaner of oils, grime, and other contaminants.
ElectriCorr® VpCI®-239 is an effective outdoor inhibitor of galvanic corrosion for most metals and alloys normally found in electrical and electronic applications such as aluminum, copper, tin, and ferrous metals.
ElectriCorr® VpCI®-239 is free of CFCs and 1,1,1-Trichlorethane. Provides instant corrosion protection.
In severely corrosive environments, ElectriCorr® VpCI®-239 can be used along with Cortec’s VpCI®-100 series impregnated foam devices for extended continuous protection.

Appearance Light orange liquid
Film Type Dry
Flash Point 178 °F (81 °C)
Removal Methods Alkaline cleaners and solvents (VpCI-416/VpCI-419)
Density 6.6-6.8 lb/gal (0.79-0.81 kg/l)
Freeze Point N A
Carrier Solvent
Non-volatile Content N A


Packaging

Electricorr® VpCI®-239 is packaged in cartons of six 9.45 oz (267.75 gram) aerosol cans











Reference Documents:
Bag On Valve Aerosols VCI Rust Preventatives Catalogue PDF

EcoSpray® VCI Rust Preventatives Catalogue PDF
