Food Safe Lubricants Hydraulic Oils

About Food Safe Hydraulic Oils
ISO VG 32, 46, 68 and 100 | NSF H1 Registered | Synthetic | HACCP





What You Should Know About Hydraulic Lubrication In The Food and Pharmaceutical Industry



The most important component of any hydraulic system is the fluid it contains. The first hydraulic equipment used water, which is still a common practice in large hydraulic systems for economic and environmental reasons. Water-based fluids are also used to operate hydraulic equipment in foundries and coal mines where there is a risk of fire. However, most of the hydraulic fluids in use today are based on mineral or synthetic oils. For the food industry it's specially frequent to see synthetic based fluids as regulations around the world are pushing to only allow MOSH/ MOA free lubricants in food processing areas.
Mineral oils satisfy the main requirement of a hydraulic fluid in most non food applications. The main function the must fulfill is to transmit pressure in a defined temperature range. In addition, they can lubricate the moving parts of the hydraulic circuit and protect them against corrosion when the cylinders are completely full (or, if you include VCI oil additives, they'll be able to protect against rust in every possible scenario). However, to carry out many of the functions required in the most complex and modern hydraulic systems, the use of additives is needed to correct and improve the properties of mineral oils. Synthetic oils with H1 registration face big constrains regarding the amount and type of additives that are admissible which make their formulation more challenging.





Fully Synthetic Anti Wear Hydraulic Oils NSF H1 Registered Selection



About CAMCO® FMO-8 Series For The Food Processing Industry

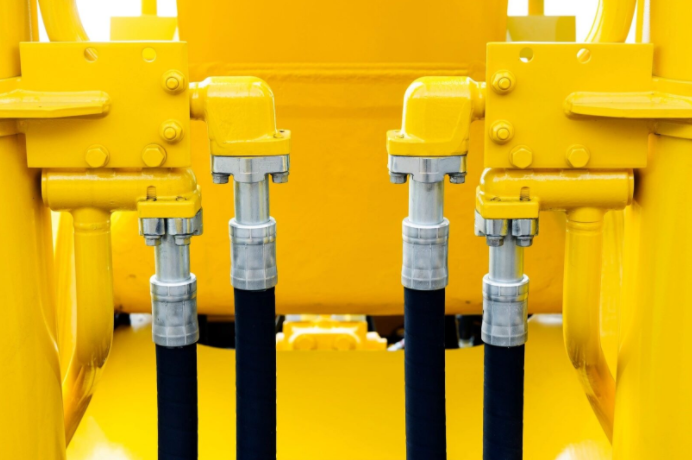

Hydraulics

CAMCO® FMO-8 Series are high quality performance H-1 NSF food grade Hydraulic Oils. The CAMCO FMO 8 Series has excellent thermal and oxidative stability providing reliable performance and extending oil life in severe applications. Minimal deposit formation gives a cleaner system and reduced frequency of filter changes.
CAMCO FMO 8 Series are custom-blended polyalphaolefin (PAO) synthetic hydrocarbon oils giving improved lubrication at high and low temperatures, reduced volatility and compatibility with mineral oils and equipment designed for use with mineral oils. Excellent shear stability, as the synthetic requires no VI improvers producing no excessive loss in viscosity due to mechanical shearing. Good antiwear properties promote reduced downtime due to unscheduled maintenance and savings from reduced replacement part costs.
Excellent water separation and hydrolytic stability mean reduced downtime through prolonged lubricant life and increased equipment reliability.

Authorized by NSF for use in Federally inspected meat and poultry plants (H-1). Complies with FDA 21 CFR 178.3570 – Lubricants with Incidental Food Contact.



Best Food Safe Heavy Duty Air Compressor Lubrication At The Lowest Cost



Polyalphaolefin (PAO) Food Grade Reciprocating Air Hydraulic Oil.



CAMCO® FMO-8-32

NSF H1 Synthetic ISO VG 32 | Hydraulic Oil | AW Additives | Made in USA |

Products

CAMCO® FMO-8-32 is a fully synthetic ISO VG 32 Hydraulic Oil that is also suitable for multipurpose lubrications in the food industry. Long operating times due to high temperature and oxidation stability. Good wear protection. Resistant to water vapours, alkali and acid disinfectants and cleaning agents. Tasteless and odourless.
Formulation acc. to the FDA guideline 21 CFR 178.3570. Registrated by the NSF in category H1 for the use in the food industry if an incidental contact is technically inevitable. Through optimum additivation against oxidation and aging economically extended operating times. Resistant to hot and cold water, steam, common disinfection and cleaning agents. It presents strong adhering properties.
For optimum performance clean thoroughly the lubrication point first mechanically and then with an appropriate food safe cleaner. Before initial filling of gears remove corrosion protection agent. Fill gear so that the dipping teeth receive lubricant for sure. Apply sufficient amount with a brush, dripping oiler, by dipping or central lubrication systems. Instructions of the gear and machine manufacturer have to be observed. Relubrication intervals and amount to be defined according to service conditions. Don't mix with other lubricants.

*For more information please contact our technical department

Color Clear Oil

Viscosity: @ 40°C cSt ASTM D445 31.4
Viscosity: @ 100°C cSt 6
Viscosity: @ 100°F 34.3
Viscosity: @ 210°F 6.1
Viscosity Index ASTM D2270 140
Pour Point °F (°C) ASTM D97 -87(-66)
Flash Point, C.O.C., °F(°C) ASTM D92 464(240)
Specific Gravity, ASTM D1298 0.826

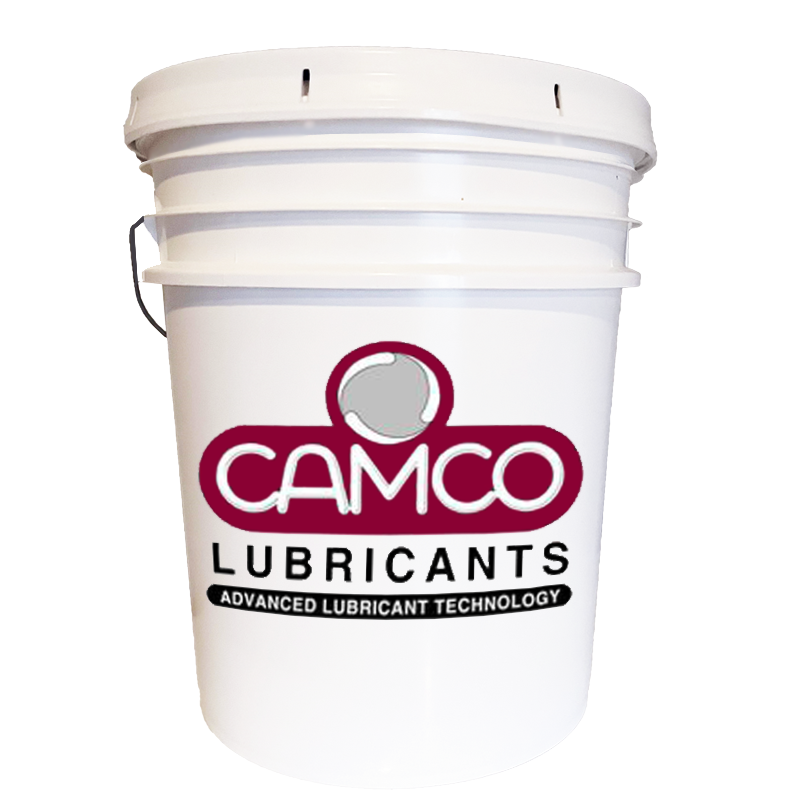

Packaging sizes

-5 Gallon pails -55 Gallon Drums



CAMCO® FMO-8-46

NSF H1 Synthetic ISO VG 46 | Hydraulic Oil | AW Additives | Made in USA |

Products

CAMCO® FMO-8-46 is a fully synthetic ISO VG 46 Hydraulic Oil that is also suitable for multipurpose lubrications in the food industry. Long operating times due to high temperature and oxidation stability. Good wear protection. Resistant to water vapours, alkali and acid disinfectants and cleaning agents. Tasteless and odourless.
Formulation acc. to the FDA guideline 21 CFR 178.3570. Registrated by the NSF in category H1 for the use in the food industry if an incidental contact is technically inevitable. Through optimum additivation against oxidation and aging economically extended operating times. Resistant to hot and cold water, steam, common disinfection and cleaning agents. It presents strong adhering properties.
For optimum performance clean thoroughly the lubrication point first mechanically and then with an appropriate food safe cleaner. Before initial filling of gears remove corrosion protection agent. Fill gear so that the dipping teeth receive lubricant for sure. Apply sufficient amount with a brush, dripping oiler, by dipping or central lubrication systems. Instructions of the gear and machine manufacturer have to be observed. Relubrication intervals and amount to be defined according to service conditions. Don't mix with other lubricants.

*For more information please contact our technical department

Color Clear Oil

Viscosity: @ 40°C cSt ASTM D445 46.9
Viscosity: @ 100°C cSt 7.9
Viscosity: @ 100°F 51.5
Viscosity: @ 210°F 8.1
Viscosity Index ASTM D2270 139
Pour Point °F (°C) ASTM D97 -76(-60)
Flash Point, C.O.C., °F(°C) ASTM D92 514(268)
Specific Gravity, ASTM D1298 0.829


Packaging sizes

-5 Gallon pails -55 Gallon Drums



CAMCO® FMO-8-68

NSF H1 Synthetic ISO VG 68 | Hydraulic Oil | AW Additives | Made in USA |

Products

CAMCO® FMO-8-68 is a fully synthetic ISO VG 68 Hydraulic Oil that is also suitable for multipurpose lubrications in the food industry. Long operating times due to high temperature and oxidation stability. Good wear protection. Resistant to water vapours, alkali and acid disinfectants and cleaning agents. Tasteless and odourless.
Formulation acc. to the FDA guideline 21 CFR 178.3570. Registrated by the NSF in category H1 for the use in the food industry if an incidental contact is technically inevitable. Through optimum additivation against oxidation and aging economically extended operating times. Resistant to hot and cold water, steam, common disinfection and cleaning agents. It presents strong adhering properties.
For optimum performance clean thoroughly the lubrication point first mechanically and then with an appropriate food safe cleaner. Before initial filling of gears remove corrosion protection agent. Fill gear so that the dipping teeth receive lubricant for sure. Apply sufficient amount with a brush, dripping oiler, by dipping or central lubrication systems. Instructions of the gear and machine manufacturer have to be observed. Relubrication intervals and amount to be defined according to service conditions. Don't mix with other lubricants.

*For more information please contact our technical department

Color Clear Oil

Viscosity: @ 40°C cSt ASTM D445 68.5
Viscosity: @ 100°C cSt 10.4
Viscosity: @ 100°F 75.7
Viscosity: @ 210°F 10.7
Viscosity Index ASTM D2270 140
Pour Point °F (°C) ASTM D97 -60(-51)
Flash Point, C.O.C., °F(°C) ASTM D92 519(268)
Specific Gravity, ASTM D1298 0.835


Packaging sizes

-5 Gallon pails -55 Gallon Drums



CAMCO® FMO-8-100

NSF H1 Synthetic ISO VG 100 | Hydraulic Oil | AW Additives | Made in USA |

Products

CAMCO® FMO-8-100 is a fully synthetic ISO VG 100 Hydraulic Oil that is also suitable for multipurpose lubrications in the food industry. Long operating times due to high temperature and oxidation stability. Good wear protection. Resistant to water vapours, alkali and acid disinfectants and cleaning agents. Tasteless and odourless.
Formulation acc. to the FDA guideline 21 CFR 178.3570. Registrated by the NSF in category H1 for the use in the food industry if an incidental contact is technically inevitable. Through optimum additivation against oxidation and aging economically extended operating times. Resistant to hot and cold water, steam, common disinfection and cleaning agents. It presents strong adhering properties.
For optimum performance clean thoroughly the lubrication point first mechanically and then with an appropriate food safe cleaner. Before initial filling of gears remove corrosion protection agent. Fill gear so that the dipping teeth receive lubricant for sure. Apply sufficient amount with a brush, dripping oiler, by dipping or central lubrication systems. Instructions of the gear and machine manufacturer have to be observed. Relubrication intervals and amount to be defined according to service conditions. Don't mix with other lubricants.

*For more information please contact our technical department

Color Clear Oil

Viscosity: @ 40°C cSt ASTM D445 100
Viscosity: @ 100°C cSt 13.7
Viscosity: @ 100°F 111
Viscosity: @ 210°F 14.1
Viscosity Index ASTM D2270 138
Density, lb/gal, 60°F 6.9
Pour Point °F (°C) ASTM D97 -55(-52)
Flash Point, C.O.C., °F(°C) ASTM D92 574(301)
Specific Gravity, ASTM D1298 0.839


Packaging sizes

-5 Gallon pails -55 Gallon Drums



Reference Documents:

Camco Food Grade Products Catalogue PDF
Visit Camco's webpage





Camco® brand and logo is registered trademark of Camco® Lubricants.
