grease bearing

High Performance Greases, Oils, Anti Seize Pastes, Powders and MoS2 Brought To Atlanta By VCI & Lubricants





Lubricant Categories

We offer powders, oils, greases, metalworking fluids, biobased products, food grade lubricants and additives and additives in general. Please click on the tabs below to explore our products.



Powders



Lubricant powders are dry and have some unique applications ranging from being used as additives for "wet lubricants", additives for plastics, dry lubrication in high dirt environments and can even be used to make special metal alloys or sintered metal. The most common ones are Graphite, MoS2, WS2 and PTFE.



Oils



Oils dissipate heat well from the lubricating point while providing good creep and wetting behaviour. Therefore oil lubrication is often used at high temperatures or high speeds of rotation. The most common mechanical elements that require oil lubrication are gears, chains, friction bearings, hydraulics and compressors.

Oil based lubricants can be based on mineral oils, synthetic hydrocarbons such as PAOs, esters, polyglycols and silicone oils. All of them are very different in their physical properties and chemical behaviour. When replacing lubricant oils you must be careful to evaluate that the base oils are compatible to ensure success.



Long Term Greases

When the mechanical element is not design to withold oil lubrication grease is used most likely. Greases are made of a base oil that is bound by a thickener. This ensures that the lubricant remains at the lubricating point. There it ensures permanently effective protection against friction and wear and seals the lubricating point against contaminants such as moisture and dust. Greases are often used at bearings, spindles, fittings, seals, guides and gears.

In addition to the compatibility of the base oils, the miscibility of the thickeners has to be checked when changing greases.

The most common thickners in our greases are Lithium Complex, Bentone, Calcium Sulfonate and Silicate.



Assembly Pastes (Anti Seize Greases)

Pastes basically have the same structure as greases, but the big difference is the share of solid lubricants is much higher. This makes them ideal for limit or mixed friction regimes of friction to ensures reliable lubrication and separation under the effects of extreme temperature, pressure and aggressive influences. Pastes are used for the correct assembly of screwed connections as well as the pressing fit of pins, bolts and other fastners.



Bonded Coatings - Dry Lubricants

Bonded coatings are solid lubricants (in most cases graphite, MoS2 or PTFE) that are placed in a binder with a solvent. Bonded Coatings have many unique applications from providing lifetime lubrication in difficult to access mechanical elements that work in a limit or mixed friction regime to regulating torque in threaded connections. These products provide a great solution to have powders attached strongly to metal surfaces in order to increase relubrication intervals.



Tribology Is What We Study

Tribology is concerned wiht the scientific characterisation of friction, wear and lubrication and the development of technologies serving to optimise frictional processes.
A distinction is made between "tribomechanical" and "tribochemical" effects.




Lubricant Powders

MoS2

MoS2 powder

MoS2-powder technical microfine is used to improve the sliding properties of machine parts. For sliding properties improvement of machine parts, and precision machinery, especially for microfinished surfaces, incorporation in plastics, sealings, packages, sintered metals and improvement of sliding properties. Also for long-term and lifetime-lubrication. For more information visit our product specific website.



Technical Information

SPECIFICATION TYPICAL VALUES

Median particle size (Microns)

1.25 - 1.60

Mo % (min)

57.5

Acid Insol% (max)

0.50

Iron% (max)

0.30

Water (max)

0.20

Oil% (max)

0.45

MoO3% (max)

0.16

Approx. Density g/cm3

0.32

Lubricant Oils

General definition

Oils dissipate heat well from the lubricating point. In addition, they have an notedly good creep and wetting behaviour. Therefore oil lubrication is often used at high temperatures or high speeds of rotation. Typical fields of application are gears, chains, friction bearings, hydraulics and compressors.



Multipurpose Oils

Design for everyday lubrication and dealing with frozen nuts/ bolts due to corrosion attack.



VpCI®-Super Penetrant
super penetrant

Cortec® VpCI® Super Penetrant offers a deep penetrating formulation that loosens frozen parts locked in rust. Its deep penetrating capabilities allow the user to go through as much as 1/2 inch (13 mm) of rust in 30 minutes. VpCI® Super Penetrant can be applied by a variety of convenient methods to meet any application needs including brush, hand pump spray, aerosol, spray application, or dipping



Appearance: Clear amber liquid

Film Type: Oily

Flash Point: 170°F (77°C)

Removal Methods: Alkaline cleaners and solvents (VpCI-416/VpCI-419)

Density 6.8-7.0 lb/gal (0.82-0.84 kg/l)

Non-volatile Content 30-40%



VpCI® Super Penetrant is available in 5 gallon (19 liter) pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk. It isalso available in aerosol form net weight 5.25oz (148.84g).



VpCI®-Corrlube Food Grade Penetrant - NSF H1

CorrLube Food Grade Penetrant is a light penetrating oil that contains only NSF H-1 approved ingredients. CorrLube Food Grade Penetrant is a deep penetrating formulation which attacks rust to free the frozen parts. This product has a very low surface tension on the water-oil-metal-air interfaces, which provides complete surface coverage and water displacement. CorrLube Food Grade Penetrant penetrates quickly to free rusted or corroded fasteners and facilitates easy operation of air actuated pins and guides.



Appearance: Clear colorless to slightly yellow liquid

Density: 6.9-7.1 lbs/gal (0.82-0.85 kg/l)

Non-Volatile (weight): 95-100

NSF Rating: H-1

Kinematic Viscosity (Typical-Finished) - ASTM D-445 cSt @ 40°C 13

Saybolt Viscosity (Typical-Finished) - ASTM D-2161 SUS @ 100°F 71 SUS @ 210°F 36

Pour Point (ASTM D-97) -20°F (-29°C)

Flash Point 360°F (182°C)

ASTM D-1748 (Humidity Chamber): 190+ hours

ASTM D-130 Copper Strip Corrosion: 1B



CorrLube Food Grade Penetrant is available in 5 gallon (19 liter) pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk.



Gear Oils

We offer a variety of different Gear Oils. We can custom make them with high EP properties, mineral and synthetic based and also improve corrosion protectio with VCI additives that would allow the customer to ship the components without worrying about pitting or other forms of rust from occuring when shipping and storing.



V-Lub®-Gear Oils



GEARBOX



Available in ISO 150, 220, 320, 460 and 680 both mineral and synthetic versions. Optional VCI additive package.



Appearance: Clear amber liquid

Film Type: Oily

Flash Point: 170°F (77°C)

Removal Methods: Alkaline cleaners and solvents

Density 6.8-7.0 lb/gal (0.82-0.84 kg/l)





V-Lub® Gear Oils are available in 5 gallon (19 liter) pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk.





Industrial Greases

When oil lubrication is not possible or if a cooling function is not required, a lubricating grease is used usually. Greases are made of a base oil that is kept in place by a thickener or soap. This ensures that the lubricant remains at the mechanical part to effective protection against friction and wear and seals the lubricating point against external contaminants such as moisture and foreign matter. Greases are often used at rolling and friction bearings, spindles, fittings, seals, guides and gears. We don't usually recommend chain lubrication with them.

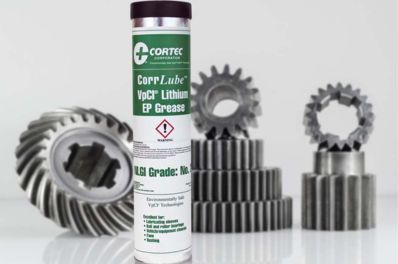

CorrLube® VpCI® Lithium EP Grease
main pricture grease

CorrLube™ VpCI® Lithium EP Grease is a lithium complex grease formulated with a premium quality, severely hydrotreated base stock. It provides excellent resistance to oxidation and has good high temperature stability. CorrLube™ VpCI® Lithium EP Grease is suitable for both operating and layup conditions. CorrLube™ VpCI® Lithium EP Grease is specifically formulated with superior corrosion inhibiting properties against salt water, brine, H2 S, HCl, and other corrosive agents. In addition, CorrLube™ VpCI® Lithium EP Grease incorporates Vapor phase Corrosion Inhibitors for areas not in direct contact with the grease.



NLGI Grade: 2

Color: Dark Gray

Dropping Point (ASTM D566): 360 °F (182 °C)

Corrosion Test (D1743): PASS

Oxidation Stability (100 Hrs, PSI Drop) Max (ASTM D942): 10

Timken OK Load, Typical (ASTM D2509): 60 lb

Four Ball EP, Weld Point (ASTM D2596): 315 kg

Four Ball Anti-Wear (Typical Scar, mm) (ASTM D2266): 0.4-0.5

Oil, Viscosity @ 104 °F (40 °C), CSt, Typical: 170-200

Density: 7.6-7.8 lb/gal (0.91-0.93 kg/L)



This product is available in 14.5 oz cartridges (12 per carton) and 39Lbs pails.

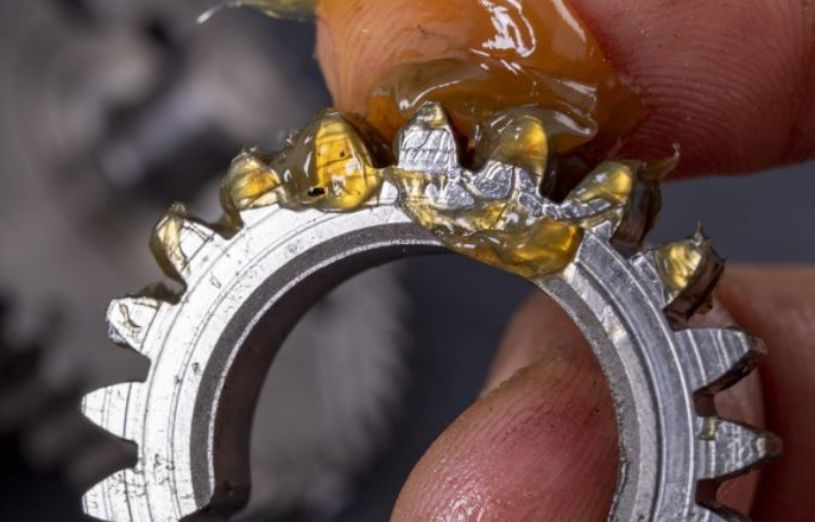

EcoLine® Bio-Based Food Machinery Grease #1 and #2 - NSF H1

EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 are NLGI grade 1 and 2 greases for lubrication of machinery where there is the possibility of incidental contact with food. Made from natural seed oils, EcoLine® Bio-Based Food Machinery Grease #1 and #2 provide superior lubricity to moving metal parts. They show good adhesion to resist water washout and have a wide range of operating temperatures. EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 contain 96% USDA certified biobased content and are qualified products under the mandatory federal purchasing initiative of the USDA BioPreferred® Program. They are ready to meet demanding lubrication applications in the food and beverage processing industries. EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 are registered with the NSF Nonfood Compounds Registration Program as H1 category lubricants for incidental food contact (Reg. #157337 and Reg. #157338, respectively).



NLGI Grade: 1 and 2

Appearance: Golden

Base Oil Viscosity 40 °C (104 °F): 130

Base Oil Viscosity 100 °C (212 °F): 22

Viscosity Index: 198

Dropping Point (ASTM D2265): 265 °C (509 °F)

Penetration, 60 strokes (ASTM D-217): NLGI 1: 340, NLGI 2: 280

Four Ball Wear Scar: 0.48 mm

Four Ball Weld Load: 200 kg

Corrosion (ASTM D-1743): Pass



Available in 14 ounce (396 g) cartridges (12 per carton), 5 gallon (19 liter) plastic pails, and 55 gallon (208 liter) metal drums. To avoid separation, store in a cool, dry area at 32-86 °F (0-30 °C). EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 should be stored in a sealed container. Exposure to high temperatures, dust, dirt, or other contaminants can severely deteriorate the quality of the product.




Metalworking fluids

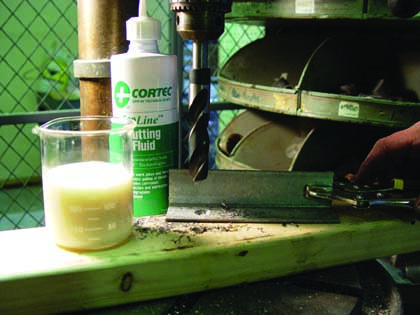

coolant

Metalworking Cutting fluids are a type of coolant and lubricant designed specifically for metalworking processes, such as machining and stamping. There are various kinds of cutting fluids, which include oils, oil-water emulsions, etc. Depending on context and on which type of cutting fluid is being considered, it may be referred to as cutting fluid, cutting oil, cutting compound or coolant. The new trend is to base formulations on renewable resources to provide an environmetally friendly product with great corrosion prevention properties.







EcoLine® Metalworking Fluid

EcoLine® Metalworking Fluid formulated with biobased oil, additives, and emulsifiers is an excellent replacement for chlorinated products. This product is designed to work in a variety of soft and hard water qualities and offers long-term protection for machine and components. Low maintenance and inherently stable, EcoLine® Metalworking Fluid is designed for machine shops where long service life, excellent machining performance, health, and environmental concerns are important factors for increased productivity. This multifunctional biodegradable product is supplied in concentrated form and requires mixing with water before use.



Appearance: Slightly hazy brown liquid.

Non-volatile Content: 90-95%

pH: 8.5-9.3 (1% aqueous)

Density 7.9-8.1 lb/gal (0.95-0.97 kg/l)

ASTM D 1748 (Humidity Chamber) Pass: 900 hours (for 5% solution)

ASTM D 4627-86 (Cast Iron Chip Test) Pass: (1% solution)



ASTM D 4172 (Four Ball Wear Test) Scar diameter (mm) 1 hour, 25ºC, 1200 rpm, 40 kg

EcoLine Metalworking Fluid (5% conc.)

-0.60 mm

Conventional product (5% conc.)

-0.66 mm



EcoLine Metalworking Fluid is packaged in 5 gallon (19 liter) pails, 55 gallon (208 liter) drums, liquid totes, and bulk.



VpCI®-344

VpCI-344 is a concentrated corrosion preventive liquid/ metalworking lubricant for wet tempering of galvanized and cold-rolled steel, difficult-to-produce metal stampings, wire rope, tubular products, and machine parts. This water-based product utilizes Vapor phase Corrosion Inhibitor (VpCI) technology for maximum protection. VpCI-344 gives very good protection when coated on metal surfaces, and has a unique vapor phase action which protects uncoated and difficult-to-reach areas on casting and stamping equipment. When used as directed, VpCI-344 prevents corrosion indoors for up to two years. VpCI-344 forms a clear solution in water. If needed, this product is designed to be removed with conventional alkaline cleaners.



Appearance: Clear dark amber liquid

Film Type: Dry, clear

Non-volatile Content: 45-50%

pH: 8.3-9.3 (Neat)

Density: 8.7-8.9 lb/gal (1.04-1.07 kg/l)



VpCI-344 is available in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, liquid totes and bulk. The product should be sealed and stored in a heated warehouse to avoid freezing. VpCI-344 has a shelf life of 24 months.



Bio-based Rust Preventative Oils

When environmentally friendly lubrication/ corrosion protection is required, this range of products is a go to. Formulations based on high viscosity canola oil provide outstanding corrosion resistance and great lubrication for non demanding applications.





Ecoline®-3690 Canola oil based lubricant/ rust preventative
ecoline usda

EcoLine® 3690 is a biodegradable, biobased, ready-to-use temporary coating designed for severe marine and high humidity conditions. When applied on the surface, this product leaves an oily film, which provides excellent outdoor protection on any metal surface. The film is self-healing and moisture-displacing, providing superior protection against aggressive environments.


Application:

• Biodegradable

• Biobased: made with sustainable resources

• Non-hazardous, non-toxic

• Excellent indoor and outdoor protection

• Provides multi-metal corrosion protection

• Excellent lubricity

• Temperature stable up to 180°F (82°C)

• Low freezing point 0°F (-18°C)

• Can be applied to painted surfaces

• Meets MIL-PRF-16173E (Grade 2)



Volume Solids: 95-100%

VOCs (ASTM D3960): 0 lbs/gal (0 g/L)

Viscosity 50-70 sec #3 Zahn Cup,: 500-2000 CPS @ 104 oF (40 °C)

Spreading Rate: 1575 sq.ft/gal @ 1.0 mils DFT (39 sq.m/L @ 25 µm)

Weight per Gallon: 7.8 lbs/gal (0.94 kg/L)

Flash Point: 482 °F (250 °C)

Recommended DFT: 1.0-3.0 mils (25-75 µm)

Recommended WFT 1.0-3.0 mils (25-75 µm)

Salt Spray (ASTM B117): 500+ hrs

Humidity (ASTM D1748): 2000+ hrs



EcoLine® 3690 is available in 5 gallon (19 liter) pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk.



Bio-based Grease

EcoLine® Bio-Based Food Machinery Grease #1 and #2 - NSF H1

EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 are NLGI grade 1 and 2 greases for lubrication of machinery where there is the possibility of incidental contact with food. Made from natural seed oils, EcoLine® Bio-Based Food Machinery Grease #1 and #2 provide superior lubricity to moving metal parts. They show good adhesion to resist water washout and have a wide range of operating temperatures. EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 contain 96% USDA certified biobased content and are qualified products under the mandatory federal purchasing initiative of the USDA BioPreferred® Program. They are ready to meet demanding lubrication applications in the food and beverage processing industries. EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 are registered with the NSF Nonfood Compounds Registration Program as H1 category lubricants for incidental food contact (Reg. #157337 and Reg. #157338, respectively).



NLGI Grade: 1 and 2

Appearance: Golden

Base Oil Viscosity 40 °C (104 °F): 130

Base Oil Viscosity 100 °C (212 °F): 22

Viscosity Index: 198

Dropping Point (ASTM D2265): 265 °C (509 °F)

Penetration, 60 strokes (ASTM D-217): NLGI 1: 340, NLGI 2: 280

Four Ball Wear Scar: 0.48 mm

Four Ball Weld Load: 200 kg

Corrosion (ASTM D-1743): Pass



Available in 14 ounce (396 g) cartridges (12 per carton), 5 gallon (19 liter) plastic pails, and 55 gallon (208 liter) metal drums. To avoid separation, store in a cool, dry area at 32-86 °F (0-30 °C). EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 should be stored in a sealed container. Exposure to high temperatures, dust, dirt, or other contaminants can severely deteriorate the quality of the product.



Bio-based Metalworking Fluid

EcoLine® Metalworking Fluid
coolant

EcoLine® Metalworking Fluid formulated with biobased oil, additives, and emulsifiers is an excellent replacement for chlorinated products. This product is designed to work in a variety of soft and hard water qualities and offers long-term protection for machine and components. Low maintenance and inherently stable, EcoLine® Metalworking Fluid is designed for machine shops where long service life, excellent machining performance, health, and environmental concerns are important factors for increased productivity. This multifunctional biodegradable product is supplied in concentrated form and requires mixing with water before use.



Appearance: Slightly hazy brown liquid.

Non-volatile Content: 90-95%

pH: 8.5-9.3 (1% aqueous)

Density 7.9-8.1 lb/gal (0.95-0.97 kg/l)

ASTM D 1748 (Humidity Chamber) Pass: 900 hours (for 5% solution)

ASTM D 4627-86 (Cast Iron Chip Test) Pass: (1% solution)



ASTM D 4172 (Four Ball Wear Test) Scar diameter (mm) 1 hour, 25ºC, 1200 rpm, 40 kg

EcoLine Metalworking Fluid (5% conc.)

-0.60 mm

Conventional product (5% conc.)

-0.66 mm



EcoLine Metalworking Fluid is packaged in 5 gallon (19 liter) pails, 55 gallon (208 liter) drums, liquid totes, and bulk.




Oil Additives

Additives are chemical mixtures that can be added to base products to provide them some specific improved characteristic.

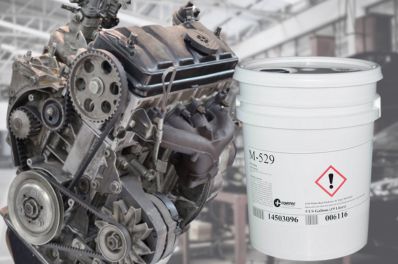

M-529/M-529 L/M-529 SC, Patented
Oil Based Corrosion Inhibitor Additive With VCI
additives

M-529 is an oil-based package of corrosion inhibitors for lubricating oils. M-529 provides excellent corrosion protection during operating conditions and intermittent operation. M-529/M-529 L are very effective for mineral and synthetic based oils: napthenic, iso-paraffinic, PAOs, etc. M-529 L additionally contains an EP lubricity package and is recommended for lubriciating oil when EP lubricity is needed, such as gears or transmissions.

Appearance: Dark Amber Color

Specific Gravity: 0.92

Viscosity (ASTM D92) 40 °C: 185 cSt / 100 °C 16.5 cSt

Viscosity Index: 93

Pour Point (ASTM D6749): -29 °C (-20 °F)

Flash Point (ASTM D92): 197 °C (386 °F)

Fire Point (ASTM D92): 227 °C (440 °F)

Total Acid Number (ASTM D974) mg KOH/g: 31.3



M-529 is available in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk. M-529 should be sealed before storage. The shelf life is up to 24 months.





M-531
Oil Based Corrosion Inhibitor Additive With VCI

M-531 is an oil-based package of corrosion inhibitors for petroleum and synthetic lubricants. M-531 provides outstanding vapor and contact corrosion protection with excellent demulsibility. M-531 is effective in a variety of conventional and synthetic base stocks.

Appearance: Amber Color

Specific Gravity: 0.94

Viscosity (ASTM D92) 40°C: 148 cSt / 100°C 12.9 cSt

Viscosity Index 74

Pour Point (ASTM D6749) -24°C (-11°F)

Flash Point (ASTM D92) 139°C (282°F)

Fire Point (ASTM D92) 212°C (413°F)

Total Acid Number (ASTM D974) mg KOH/g 32.7



M-531 is available in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk. M-531 should be sealed before storage. The shelf life is up to 24 months.





M-533 FG
Food Grade NSF HX-1 VCI Additive For Lubricants

M-533 FG is a premium rust inhibitor for petroleum and synthetic lubricants, greases, and rust preventative fluids. It provides excellent demulsibility and filterability and is compatible with a wide range of additives and base stocks. Being NSF HX-1 certified, M-533 FG is permitted for use in food plants where incidental contact with food is expected. M-533 FG is designed for formulating food grade lubricants that require rust protection, demulsibility, filterability, and water resistance at low treat levels. Although it is approved for use up to 10% if required, M-533 FG passes the ASTM D 665B* rust test in white mineral oil and PAO base oils at 0.10-0.20% additive level.



Typical dosage

Rust Preventive Fluids 3.00-10.0%

Hydraulic Fluids 0.05-0.5%

Circulating Oils 0.05-1.0%

Compressor Oils 0.25-1.0%

Greases 0.50-3.0%

Gear Oils 0.10-1.0%



M-533FG is available in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk. M-533FG should be sealed before storage. The shelf life is up to 24 months.



Lubricants For The Food Processing And Pharmaceutical Industry
pharma and food
M-533 FG
Food Grade NSF HX-1 VCI Additive For Lubricants

M-533 FG is a premium rust inhibitor for petroleum and synthetic lubricants, greases, and rust preventative fluids. It provides excellent demulsibility and filterability and is compatible with a wide range of additives and base stocks. Being NSF HX-1 certified, M-533 FG is permitted for use in food plants where incidental contact with food is expected. M-533 FG is designed for formulating food grade lubricants that require rust protection, demulsibility, filterability, and water resistance at low treat levels. Although it is approved for use up to 10% if required, M-533 FG passes the ASTM D 665B* rust test in white mineral oil and PAO base oils at 0.10-0.20% additive level.



Typical dosage

Rust Preventive Fluids 3.00-10.0%

Hydraulic Fluids 0.05-0.5%

Circulating Oils 0.05-1.0%

Compressor Oils 0.25-1.0%

Greases 0.50-3.0%

Gear Oils 0.10-1.0%



M-533FG is available in 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk. M-533FG should be sealed before storage. The shelf life is up to 24 months.



VpCI®-Corrlube Food Grade Penetrant - NSF H1

CorrLube Food Grade Penetrant is a light penetrating oil that contains only NSF H-1 approved ingredients. CorrLube Food Grade Penetrant is a deep penetrating formulation which attacks rust to free the frozen parts. This product has a very low surface tension on the water-oil-metal-air interfaces, which provides complete surface coverage and water displacement. CorrLube Food Grade Penetrant penetrates quickly to free rusted or corroded fasteners and facilitates easy operation of air actuated pins and guides.



Appearance: Clear colorless to slightly yellow liquid

Density: 6.9-7.1 lbs/gal (0.82-0.85 kg/l)

Non-Volatile (weight): 95-100

NSF Rating: H-1

Kinematic Viscosity (Typical-Finished) - ASTM D-445 cSt @ 40°C 13

Saybolt Viscosity (Typical-Finished) - ASTM D-2161 SUS @ 100°F 71 SUS @ 210°F 36

Pour Point (ASTM D-97) -20°F (-29°C)

Flash Point 360°F (182°C)

ASTM D-1748 (Humidity Chamber): 190+ hours

ASTM D-130 Copper Strip Corrosion: 1B



CorrLube Food Grade Penetrant is available in 5 gallon (19 liter) pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk.





EcoLine® Bio-Based Food Machinery Grease #1 and #2 - NSF H1

EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 are NLGI grade 1 and 2 greases for lubrication of machinery where there is the possibility of incidental contact with food. Made from natural seed oils, EcoLine® Bio-Based Food Machinery Grease #1 and #2 provide superior lubricity to moving metal parts. They show good adhesion to resist water washout and have a wide range of operating temperatures. EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 contain 96% USDA certified biobased content and are qualified products under the mandatory federal purchasing initiative of the USDA BioPreferred® Program. They are ready to meet demanding lubrication applications in the food and beverage processing industries. EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 are registered with the NSF Nonfood Compounds Registration Program as H1 category lubricants for incidental food contact (Reg. #157337 and Reg. #157338, respectively).



NLGI Grade: 1 and 2

Appearance: Golden

Base Oil Viscosity 40 °C (104 °F): 130

Base Oil Viscosity 100 °C (212 °F): 22

Viscosity Index: 198

Dropping Point (ASTM D2265): 265 °C (509 °F)

Penetration, 60 strokes (ASTM D-217): NLGI 1: 340, NLGI 2: 280

Four Ball Wear Scar: 0.48 mm

Four Ball Weld Load: 200 kg

Corrosion (ASTM D-1743): Pass



Available in 14 ounce (396 g) cartridges (12 per carton), 5 gallon (19 liter) plastic pails, and 55 gallon (208 liter) metal drums. To avoid separation, store in a cool, dry area at 32-86 °F (0-30 °C). EcoLine® Bio-Based Food Machinery Lubricating Grease #1 and #2 should be stored in a sealed container. Exposure to high temperatures, dust, dirt, or other contaminants can severely deteriorate the quality of the product.



Anti Seize Lubricants

Premium Grade Anti-Seize and Protective Coating

MoS2 powder

Chemola™ Desco Therm-O-Plate 220 plates onto metal surfaces to withstand heat, pressure and wear in corrosive environments. Chemola™ Desco Therm-O-Plate 220 is water repellent, chemically resistant and non-gumming. It features a synthetic, water-resistant base that will decompose at extreme temperatures, providing dry film lubrication.

Recommended Uses

Chemola™ Desco Therm-O-Plate 220 may be used on heavy, slow-speed slide applications. It is outstanding for journal and loose-tolerance bearings, but is not recommended for use with close-tolerance bearings where binding could occur due to plating on the metal surfaces. The bearings should not be over- packed as Chemola™ Desco Therm-O-Plate 220 works best as a thin film lubricant.



Typical Characteristics

Appearance Silver, smooth
NLGI 0
Penetration (ASTM D217) 345-370
Worked Penetration, 60x (ASTM D217) 345-370
Base Oil Synthetic hydrocarbon
Base Oil Viscosity 230 cSt at 40°C
Base Oil Viscosity 22 cSt at 100°C
Base Oil Viscosity Index 116
Base Oil Pour Point -22°F (-30°C)
Thickener Inorganic
Additives Dry film lubricants
Specific Gravity 1.0
Density (lb/gal) 8.1
Dropping Point (ASTM D566) >500°F (260°C)
Flash Point 248°F (120°C)
Temperature Range -40°F to 2200°F (-40°C to 1200°C)
Four-ball EP Weld Point (ASTM D2596) 160 kgf

Packaging Information

Item Number Unit Size Quantity
0804006BT 8 oz B/T 12 per case
0804012BT 16 oz B/T 12 per case
0804012AE 12 oz 12 per case
0804008QB 8 lb can
0804035WMS 35 lb metal pail

Chemola™ ThredOn™ Metal Free TJ
Metal Free Tool Joint Compound


Chemola™ ThredOn™ Metal Free TJ is a non-metallic and environmentally friendly compound for all tubular threads and is used as an alternative to metallic tool joint compounds. This premium compound is not affected by solvents, oil, mud, corrosion, mild acids, or alkalis.

Recommended Uses
Includes drill pipe, collars, tools, casings, rotary shoulders, tubing and line pipe.

Typical Characteristics
Appearance Black, smooth
NLGI 1
Penetration (ASTM D217) 310-340
Worked Penetration, 60x (ASTM D217) 310-340
Base Grease Lithium complex
Base Oil Highly Refined Mineral Oil
Base Oil Viscosity 143 cSt at 40°C
Base Oil Viscosity 11 cSt at 100°C
Base Oil Viscosity Index 40
Base Oil Pour Point -10°F (-23°C)
Solids Content Graphite, minerals
Specific Gravity 1.2
Density (lb/gal) 10.1
Dropping Point (ASTM D566) 500°F (260°C)
Flash Point 430°F (221°C)
Temperature Range 0°F to 500°F (-18°C to 260°C)
Friction Factor (API7A1) 1.0
Brushable To 0°F (-18°C)
Sulfur Content less than 0.3%
Copper Strip Corrosion (ASTM D4048 1b
Oil Separation (ASTM D6184) less than 3%

Packaging Information

Item Number Unit Size Quantity
0804035WMS 35 lb metal pail











Cortec® Logo is registered trademark of Cortec® Corporation. VpCI®, MCI®, EcoClean®, EcoAir®, BioCorr®, Boiler Lizard®, BioCorr® and Ecoline® are registered trademark of Cortec® Corporation
